Side by side

MDR 36 versus 50 versus 68

Which Mini Delta Ribbon position count and series does the exact component specify?

Computer-generated illustration, not a photograph. — P248 · Connector36-contact MDR / IEEE 1284C form

How they differ

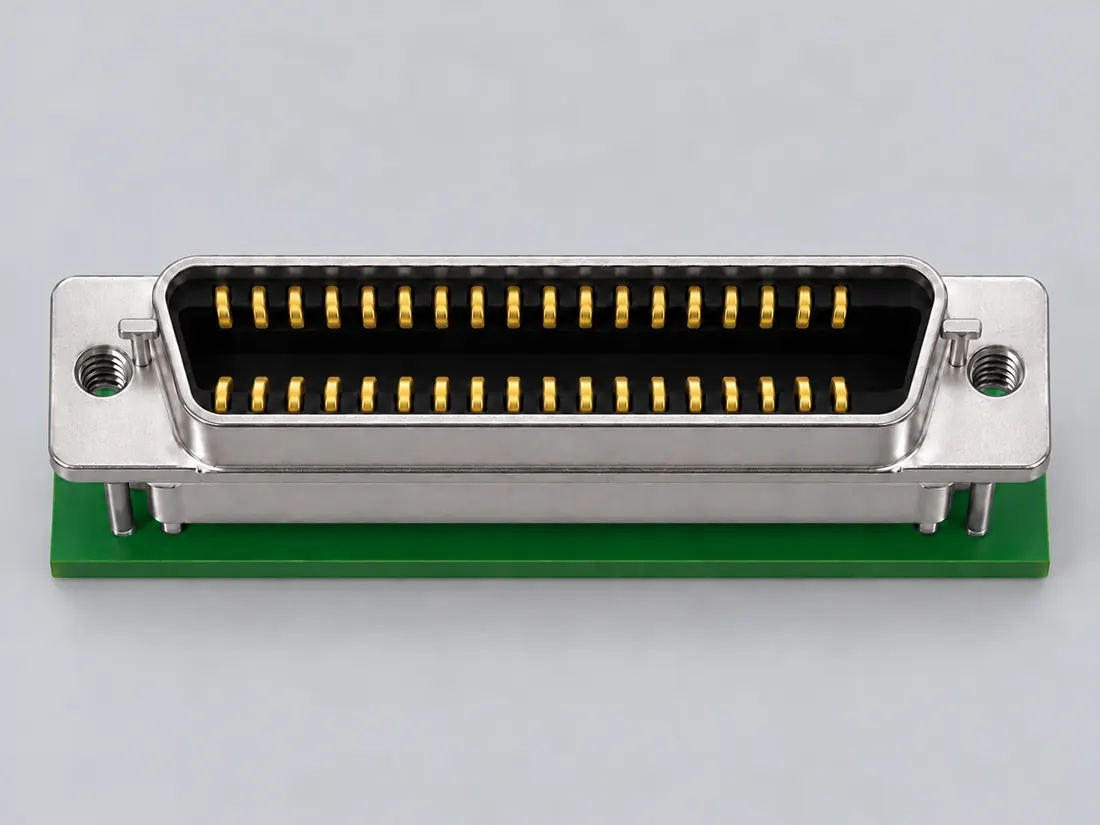

36-contact MDR / IEEE 1284C form Distinguish the compact MDR shell from the larger CHAMP-36 outline and confirm the interface designation in the equipment documentation.
50-position Mini Delta Ribbon (MDR) connector Look for the compact MDR shell/latching arrangement and confirm the 50-position variant from the component or equipment documentation.

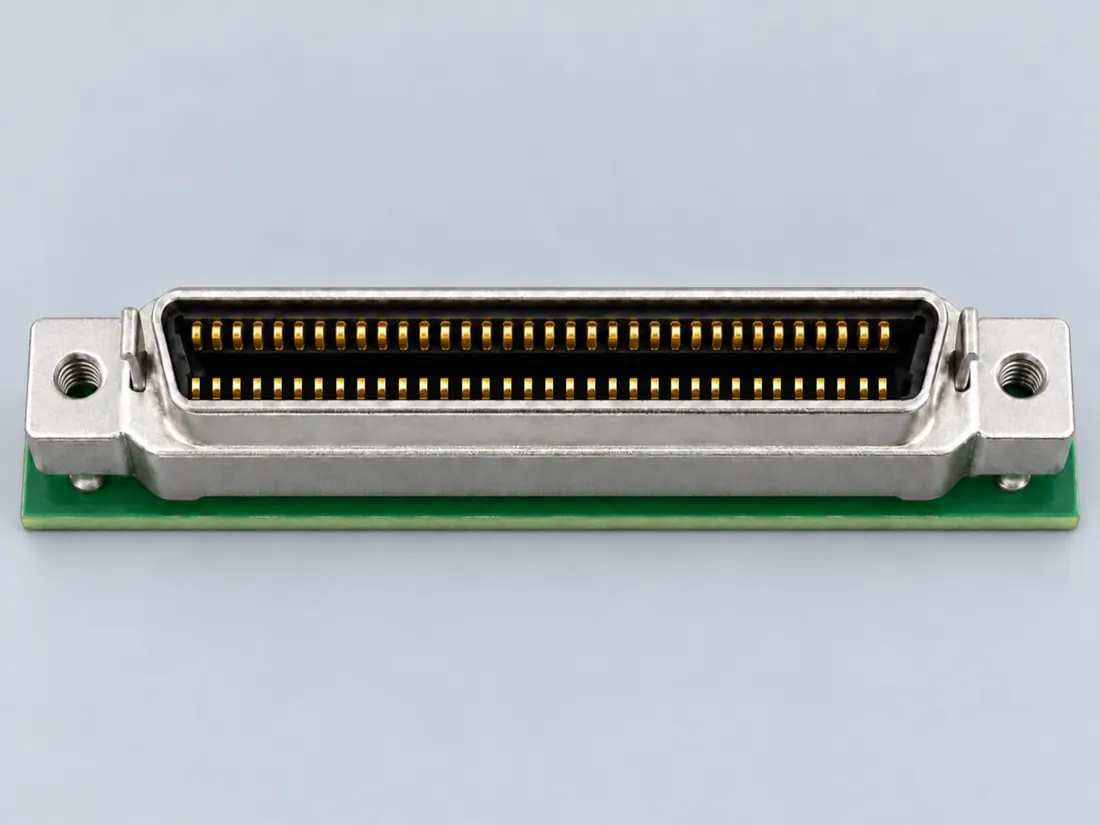

68-position Mini Delta Ribbon (MDR) connector Confirm the MDR series and 68-contact variant from markings or component documentation; do not identify it from contact count alone.

Then askWhich Mini Delta Ribbon position count and series does the exact component specify?

At a glance

Source-scoped form facts; counts, variants and unknowns are distinct
Field	36-contact MDR / IEEE 1284C form	50-position Mini Delta Ribbon (MDR) connector	68-position Mini Delta Ribbon (MDR) connector
Type	Connector	Connector	Connector
Family	Legacy computer	Legacy computer	Legacy computer
Shape	ribbon	ribbon	ribbon
Nominal contacts	36S268Source-backed nominal position/contact count: 36.	50S264Source-backed nominal position/contact count: 50.	68S265Source-backed nominal position/contact count: 68.
Positions / cavity span	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Connector role	plug (10136-52X2 (normal right-angle ordering family))S904Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Named series only, not every family part: 10136-52X2 (normal right-angle ordering family). Documented role: plug. Full PDF text read; direct403. Dimension table A-D remains an unmapped drawing axis and is not proposed. Normal and reverse D-interface variants must stay separate.	plug (10150-3000PE)S902Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 10150-3000PE. Documented role: plug. New connector source corrects scope beyond existing10350-1230-00junction-shell source. No shell dimension adopted as connector dimension.	plug (10168-900AXX (ordering family))S265Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Named series only, not every family part: 10168-900AXX (ordering family). Documented role: plug. No complete suffix chosen without order record. Linked TS-0698 PDF has no web text and direct403, so drawing dimensions and rows remain unverified.
Key distinction	Sharing a 36-contact count does not make MDR/1284C and CHAMP-36 the same connector.	The MDR family name and contact count identify a mechanical form only; cable signaling and equipment role remain implementation-specific.	A 68-contact MDR shell is not the same mechanical family as VHDCI merely because both can expose 68 contacts.

Full evidence ledger and sources ↓

Illustrations are computer-generated with prior AI visual review; independent technical and rights review pending. A comparison is not a compatibility verdict.

This comparison stays within one evidence layer.

All selected records are Connector records. Similar layer does not mean compatible, interchangeable or safe to mate.

Families represented: Legacy computer

The reference ledger

Read the same question across.

3 selected records · 13 fields
No score. No compatibility verdict.

On a narrow screen, scroll the table sideways or open the field-by-field reading view below. Illustrations are not a size comparison.

Comparison of selected field notes; source links accompany each documented specification
What you are comparing	P248 / Connector36-contact MDR / IEEE 1284C form Identification schematic · not to scale · drawing review pending	P244 / Connector50-position Mini Delta Ribbon (MDR) connector Identification schematic · not to scale · drawing review pending	P245 / Connector68-position Mini Delta Ribbon (MDR) connector Identification schematic · not to scale · drawing review pending
Layer	Connector	Connector	Connector
Key distinction	Sharing a 36-contact count does not make MDR/1284C and CHAMP-36 the same connector.	The MDR family name and contact count identify a mechanical form only; cable signaling and equipment role remain implementation-specific.	A 68-contact MDR shell is not the same mechanical family as VHDCI merely because both can expose 68 contacts.
Nominal contacts	36S268Source-backed nominal position/contact count: 36.	50S264Source-backed nominal position/contact count: 50.	68S265Source-backed nominal position/contact count: 68.
Positions / cavity span	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Populated contacts	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact pitch	1.27 mm 0.050in series pitch (10136-52X2 (normal right-angle ordering family))S904Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Named series only, not every family part: 10136-52X2 (normal right-angle ordering family). Documented role: plug. Full PDF text read; direct403. Dimension table A-D remains an unmapped drawing axis and is not proposed. Normal and reverse D-interface variants must stay separate.	1.27 mm published connector pitch (10150-3000PE)S902Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 10150-3000PE. Documented role: plug. New connector source corrects scope beyond existing10350-1230-00junction-shell source. No shell dimension adopted as connector dimension.	1.27 mm 0.050in published series pitch (10168-900AXX (ordering family))S265Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Named series only, not every family part: 10168-900AXX (ordering family). Documented role: plug. No complete suffix chosen without order record. Linked TS-0698 PDF has no web text and direct403, so drawing dimensions and rows remain unverified.
Dimensions / axis	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Connector role	plug (10136-52X2 (normal right-angle ordering family))S904Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Named series only, not every family part: 10136-52X2 (normal right-angle ordering family). Documented role: plug. Full PDF text read; direct403. Dimension table A-D remains an unmapped drawing axis and is not proposed. Normal and reverse D-interface variants must stay separate.	plug (10150-3000PE)S902Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 10150-3000PE. Documented role: plug. New connector source corrects scope beyond existing10350-1230-00junction-shell source. No shell dimension adopted as connector dimension.	plug (10168-900AXX (ordering family))S265Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Named series only, not every family part: 10168-900AXX (ordering family). Documented role: plug. No complete suffix chosen without order record. Linked TS-0698 PDF has no web text and direct403, so drawing dimensions and rows remain unverified.
Coupling / latch	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Keying / polarization	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Documented identification	36-position/contact recognition fact in the cited implementation.C248A	50-position/contact recognition fact in the cited implementation.C244A	68-position/contact recognition fact in the cited implementation.C245A
Evidence	C248A → Independent review pending	C244A,C244B → Independent review pending	C245A,C245B → Independent review pending

Read field by field — no sideways scrolling

The same selected records, fields, values and source links as the table. Missing fields remain non-equivalent; no values are merged.

Layer

36-contact MDR / IEEE 1284C formP248 / Connector: Connector
50-position Mini Delta Ribbon (MDR) connectorP244 / Connector: Connector
68-position Mini Delta Ribbon (MDR) connectorP245 / Connector: Connector

Key distinction

36-contact MDR / IEEE 1284C formP248 / Connector: Sharing a 36-contact count does not make MDR/1284C and CHAMP-36 the same connector.
50-position Mini Delta Ribbon (MDR) connectorP244 / Connector: The MDR family name and contact count identify a mechanical form only; cable signaling and equipment role remain implementation-specific.
68-position Mini Delta Ribbon (MDR) connectorP245 / Connector: A 68-contact MDR shell is not the same mechanical family as VHDCI merely because both can expose 68 contacts.

Nominal contacts

36-contact MDR / IEEE 1284C formP248 / Connector: 36S268Source-backed nominal position/contact count: 36.
50-position Mini Delta Ribbon (MDR) connectorP244 / Connector: 50S264Source-backed nominal position/contact count: 50.
68-position Mini Delta Ribbon (MDR) connectorP245 / Connector: 68S265Source-backed nominal position/contact count: 68.

Positions / cavity span

36-contact MDR / IEEE 1284C formP248 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
50-position Mini Delta Ribbon (MDR) connectorP244 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
68-position Mini Delta Ribbon (MDR) connectorP245 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Populated contacts

36-contact MDR / IEEE 1284C formP248 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
50-position Mini Delta Ribbon (MDR) connectorP244 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
68-position Mini Delta Ribbon (MDR) connectorP245 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Contact rows

36-contact MDR / IEEE 1284C formP248 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
50-position Mini Delta Ribbon (MDR) connectorP244 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
68-position Mini Delta Ribbon (MDR) connectorP245 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Contact pitch

36-contact MDR / IEEE 1284C formP248 / Connector: 1.27 mm 0.050in series pitch (10136-52X2 (normal right-angle ordering family))S904Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Named series only, not every family part: 10136-52X2 (normal right-angle ordering family). Documented role: plug. Full PDF text read; direct403. Dimension table A-D remains an unmapped drawing axis and is not proposed. Normal and reverse D-interface variants must stay separate.
50-position Mini Delta Ribbon (MDR) connectorP244 / Connector: 1.27 mm published connector pitch (10150-3000PE)S902Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 10150-3000PE. Documented role: plug. New connector source corrects scope beyond existing10350-1230-00junction-shell source. No shell dimension adopted as connector dimension.
68-position Mini Delta Ribbon (MDR) connectorP245 / Connector: 1.27 mm 0.050in published series pitch (10168-900AXX (ordering family))S265Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Named series only, not every family part: 10168-900AXX (ordering family). Documented role: plug. No complete suffix chosen without order record. Linked TS-0698 PDF has no web text and direct403, so drawing dimensions and rows remain unverified.

Dimensions / axis

36-contact MDR / IEEE 1284C formP248 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
50-position Mini Delta Ribbon (MDR) connectorP244 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
68-position Mini Delta Ribbon (MDR) connectorP245 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Connector role

36-contact MDR / IEEE 1284C formP248 / Connector: plug (10136-52X2 (normal right-angle ordering family))S904Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Named series only, not every family part: 10136-52X2 (normal right-angle ordering family). Documented role: plug. Full PDF text read; direct403. Dimension table A-D remains an unmapped drawing axis and is not proposed. Normal and reverse D-interface variants must stay separate.
50-position Mini Delta Ribbon (MDR) connectorP244 / Connector: plug (10150-3000PE)S902Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. 10150-3000PE. Documented role: plug. New connector source corrects scope beyond existing10350-1230-00junction-shell source. No shell dimension adopted as connector dimension.
68-position Mini Delta Ribbon (MDR) connectorP245 / Connector: plug (10168-900AXX (ordering family))S265Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. Named series only, not every family part: 10168-900AXX (ordering family). Documented role: plug. No complete suffix chosen without order record. Linked TS-0698 PDF has no web text and direct403, so drawing dimensions and rows remain unverified.

Coupling / latch

36-contact MDR / IEEE 1284C formP248 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
50-position Mini Delta Ribbon (MDR) connectorP244 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
68-position Mini Delta Ribbon (MDR) connectorP245 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Keying / polarization

36-contact MDR / IEEE 1284C formP248 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
50-position Mini Delta Ribbon (MDR) connectorP244 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
68-position Mini Delta Ribbon (MDR) connectorP245 / Connector: Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.

Documented identification

36-contact MDR / IEEE 1284C formP248 / Connector: 36-position/contact recognition fact in the cited implementation.C248A
50-position Mini Delta Ribbon (MDR) connectorP244 / Connector: 50-position/contact recognition fact in the cited implementation.C244A
68-position Mini Delta Ribbon (MDR) connectorP245 / Connector: 68-position/contact recognition fact in the cited implementation.C245A

Evidence

36-contact MDR / IEEE 1284C formP248 / Connector: C248A →
Independent review pending
50-position Mini Delta Ribbon (MDR) connectorP244 / Connector: C244A,C244B →
Independent review pending
68-position Mini Delta Ribbon (MDR) connectorP245 / Connector: C245A,C245B →
Independent review pending

Your next step

Use the distinction in context.

Open the field notes Read source-linked facts and limitations.Compare another pair Start from a common confusion.Check a connection A comparison is not a compatibility verdict.
