5 linked sources · 14 scoped claims · 0 sources with inspection/access flags.
Assessment 2026-10-22 · earliest scheduled source review 2027-01-03. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.
Inspect 5 source scopes, access limits and dates
Interpower · Manufacturer / product-owner domain · inspected 2026-10-05 · due 2027-01-03
Within inspection window
Scoped support: Identifies the C5/C6 and C7/C8 appliance-coupler pairs and distinguishes grounded C5/C6 from non-grounded C7/C8 forms.
Not established / limitations: Identification/reference scope only. V39 does not convert this source into a universal pinout, fabrication drawing, electrical approval, protocol guarantee or end-to-end compatibility verdict.
Locator: C5/C6 and C7/C8 sections
Interpower · Manufacturer / product-owner domain · inspected 2026-10-05 · due 2027-01-03
Within inspection window
Scoped support: Engineering scope: C5/C6 are described as three-contact grounded counterparts; C7/C8 are identified as the non-grounded Class II pair.
Not established / limitations: Engineering-reference scope only. V40 does not turn this source into fabrication approval, electrical safety approval, protocol guarantee, safe substitution or end-to-end compatibility proof.
Locator: C5/C6 and C7/C8 sections
SCHURTER · Manufacturer / product-owner domain · inspected 2026-10-05 · due 2027-01-03
Within inspection window
Scoped support: Engineering boundary: IEC 60320 appliance couplers are treated as two-pole couplers with or without a protective conductor; V40 uses this only to avoid inventing extra contacts on non-grounded pairs.
Not established / limitations: Engineering-reference scope only. V40 does not turn this source into fabrication approval, electrical safety approval, protocol guarantee, safe substitution or end-to-end compatibility proof.
Locator: IEC appliance-coupler overview
SCHURTER · Manufacturer / product-owner domain · inspected 2026-10-13 · due 2027-01-11
Within inspection window
Scoped support: Named part or series only; observed document dated 1 October 2025. Product photographs/drawings, roles and scheme-labelled data; not an installed-device assessment.
Not established / limitations: No panel-cutout template, installation method, wiring assignment, contact gauge or device safety certification.
Locator: PDF p.1 photo and data; p.3 front/side component views and separate panel cutouts; p.4 terminal variants and footer (01.10.2025).
SCHURTER · Manufacturer / product-owner domain · inspected 2026-10-13 · due 2027-01-11
Within inspection window
Scoped support: Named part or series only; observed document dated 22 October 2025. Product photographs/drawings, roles and scheme-labelled data; not an installed-device assessment.
Not established / limitations: No mounting gauge, rear-terminal map, universal current limit, polarized-variant approval or safe-mating verdict.
Locator: PDF p.1 product photo/data; p.2 front and side component drawings plus separate panel cutout; p.4 variants, cord examples and footer (22.10.2025).
Trace 14 claims to their source records
C212A · P212
Interpower identifies C6 appliance inlet within the documented C5/C6 or C7/C8 IEC 60320 appliance-coupler pair.
Claim scope: V39 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof.
Source links: S220 · Evidence trail → (private workspace)
C212B · P212
Interpower describes the IEC 60320 C5/C6 pair as having three contacts including a ground contact.
Claim scope: V40 engineering-reference fact only; independent human review remains pending. This claim does not approve fabrication, rewiring, substitution, electrical safety, protocol support or end-to-end compatibility.
Source links: S243 · Evidence trail → (private workspace)
C212C · P212

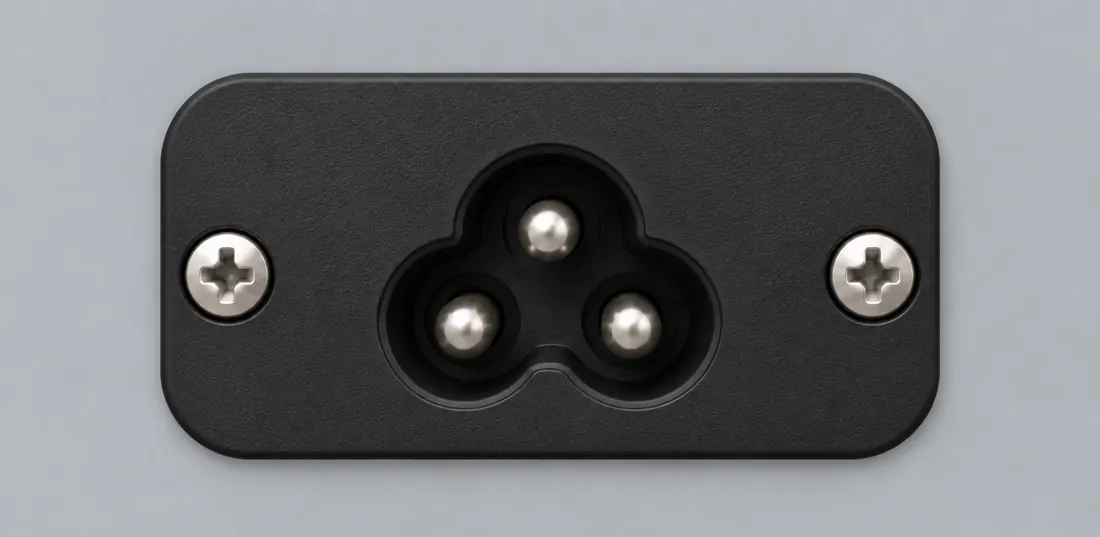

SCHURTER 2562 is a screw-mounted C6 appliance inlet. Its front drawing depicts three pins within the coupler recess, distinct from the mounting flange.
Claim scope: V144: SCHURTER 2562 series, document dated 1 October 2025 only. Identification and product data, not generic ratings, wiring instructions, device certification or a connection verdict.
Source links: S602 · Evidence trail → (private workspace)
C212D · P212
The 2562 sheet separates IEC 2.5 A / 250 VAC at 50 Hz from UL/CSA 7 A / 125 VAC at 60 Hz; these are different listed rating schemes.
Claim scope: V144: SCHURTER 2562 series, document dated 1 October 2025 only. Identification and product data, not generic ratings, wiring instructions, device certification or a connection verdict.
Source links: S602 · Evidence trail → (private workspace)
C212E · P212
SCHURTER lists the 2562 for protection-class-I appliances and gives 70 °C pin temperature; operating temperature is separately stated as −25 °C to 70 °C.
Claim scope: V144: SCHURTER 2562 series, document dated 1 October 2025 only. Identification and product data, not generic ratings, wiring instructions, device certification or a connection verdict.
Source links: S602 · Evidence trail → (private workspace)
C212F · P212
The 2562 drawing separates component views from panel cutouts and shows solder/quick-connect and PCB variants. The inlet designation alone does not specify its rear termination.
Claim scope: V144: SCHURTER 2562 series, document dated 1 October 2025 only. Identification and product data, not generic ratings, wiring instructions, device certification or a connection verdict.
Source links: S602 · Evidence trail → (private workspace)
C212G · P212
Exact source example 6160.0081: construction: C6 screw-on panel inlet;turned solid pins;2.8x0.8mm quick-connect terminals;protection class I. rating: IEC2.5A250VAC50Hz;UL/CSA7A125VAC60Hz. pin temperature c: 70. Full current official document text read. No numeric axes adopted from unviewed diagrams.; Cordset cable length and wire gauge are excluded from connector envelope. Pin-temperature class differs from allowed ambient operating range.; Regulatory declaration/certificate references do not prove a literal moulded approval mark on an individual product. No physical compatibility, pin map or hardware validation is established.
Claim scope: Exact named component/family technical construction reference from the full current primary document; geometry, ratings and implementation limits do not transfer to other variants.
Source links: S602 · Evidence trail → (private workspace)
C214A · P214
Interpower identifies C8 appliance inlet within the documented C5/C6 or C7/C8 IEC 60320 appliance-coupler pair.
Claim scope: V39 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof.
Source links: S220 · Evidence trail → (private workspace)
C214B · P214
Interpower identifies C7/C8 as the non-grounded Class II pair; V40 normalizes that as a two-pole, no-protective-earth engineering boundary.
Claim scope: V40 engineering-reference fact only; independent human review remains pending. This claim does not approve fabrication, rewiring, substitution, electrical safety, protocol support or end-to-end compatibility.
Source links: S243 · S245 · Evidence trail → (private workspace)
C214C · P214

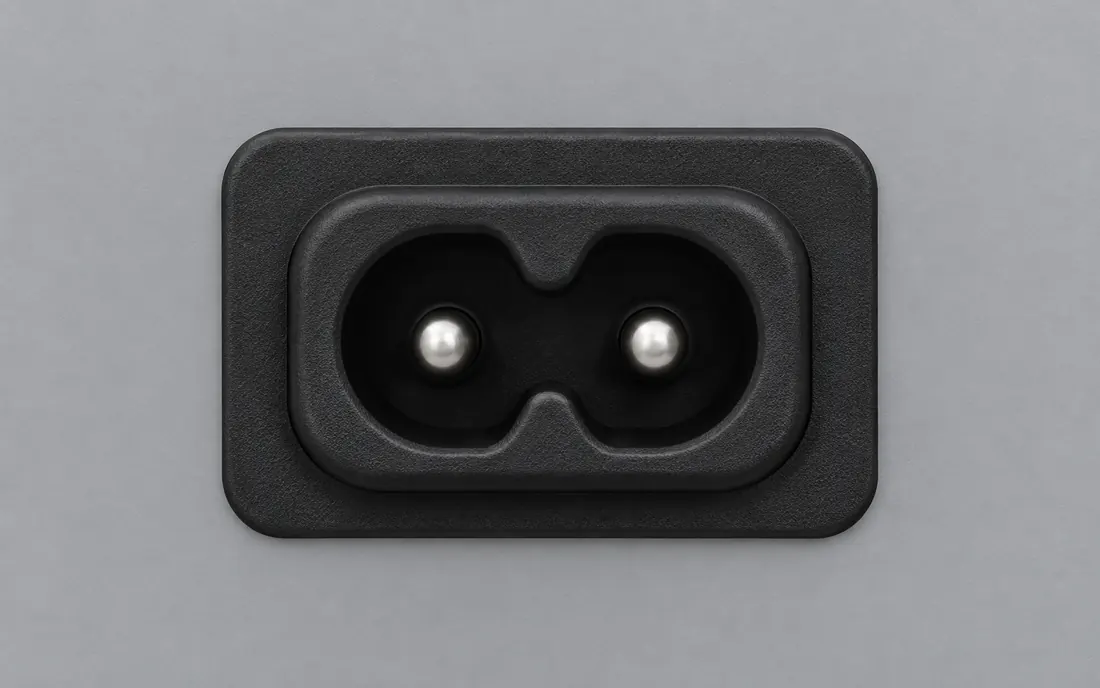

SCHURTER 2572 is an insert-mounted C8 inlet family; the front drawing shows two pins inside the recessed interface and a separate outer mounting profile.
Claim scope: V144: SCHURTER 2572 series, document dated 22 October 2025 only. Identification and product data, not generic ratings, wiring instructions, device certification or a connection verdict.
Source links: S604 · Evidence trail → (private workspace)
C214D · P214
The 2572 sheet lists IEC 2.5 A / 250 VAC at 50 Hz and UL/CSA 7 A / 125 VAC at 60 Hz as separate product-rating entries.
Claim scope: V144: SCHURTER 2572 series, document dated 22 October 2025 only. Identification and product data, not generic ratings, wiring instructions, device certification or a connection verdict.
Source links: S604 · Evidence trail → (private workspace)
C214E · P214
SCHURTER describes the 2572 as suitable for protection-class-II appliances with 70 °C pin temperature; its separate operating-temperature field is −25 °C to 70 °C.
Claim scope: V144: SCHURTER 2572 series, document dated 22 October 2025 only. Identification and product data, not generic ratings, wiring instructions, device certification or a connection verdict.
Source links: S604 · Evidence trail → (private workspace)
C214F · P214
The 2572 drawing distinguishes the mating face, rear terminal orientations and panel cutout; its mating-connector list includes C7 cord example 6013.0474.
Claim scope: V144: SCHURTER 2572 series, document dated 22 October 2025 only. Identification and product data, not generic ratings, wiring instructions, device certification or a connection verdict.
Source links: S604 · Evidence trail → (private workspace)
C214G · P214
Exact source example 6160.0008: construction: C8 drop-in panel inlet;horizontal short solder terminals;blackPA6housing;protection class II. rating: IEC2.5A250VAC50Hz;UL/CSA7A125VAC60Hz. pin temperature c: 70. Full current official document text read. No numeric axes adopted from unviewed diagrams.; Cordset cable length and wire gauge are excluded from connector envelope. Pin-temperature class differs from allowed ambient operating range.; Regulatory declaration/certificate references do not prove a literal moulded approval mark on an individual product. No physical compatibility, pin map or hardware validation is established.
Claim scope: Exact named component/family technical construction reference from the full current primary document; geometry, ratings and implementation limits do not transfer to other variants.
Source links: S604 · Evidence trail → (private workspace)
Recorded evidence only. An inspection date, publisher label, source link or generated packet is not independent technical review, hardware testing, fabrication approval or a compatibility verdict.
