Port & Cable

P246 / Legacy computer / Connector

68-contact VHDCI SCSI connector

VHDCI is a very-high-density 68-contact external connector form documented in Amphenol SCSI cable assemblies.

Also called VHDCI 68 Very High Density Cable Interconnect 68-pin VHDCI VHDCI SCSI

A 68-contact count does not make VHDCI interchangeable with MDR or other 68-position interfaces; shell and mating family must match.

Look for

Identify the narrow VHDCI shell and verify a documented VHDCI SCSI assembly rather than selecting by “68-pin SCSI” wording alone.

Claim inspection dates: 2026-10-06 · Independent review pending

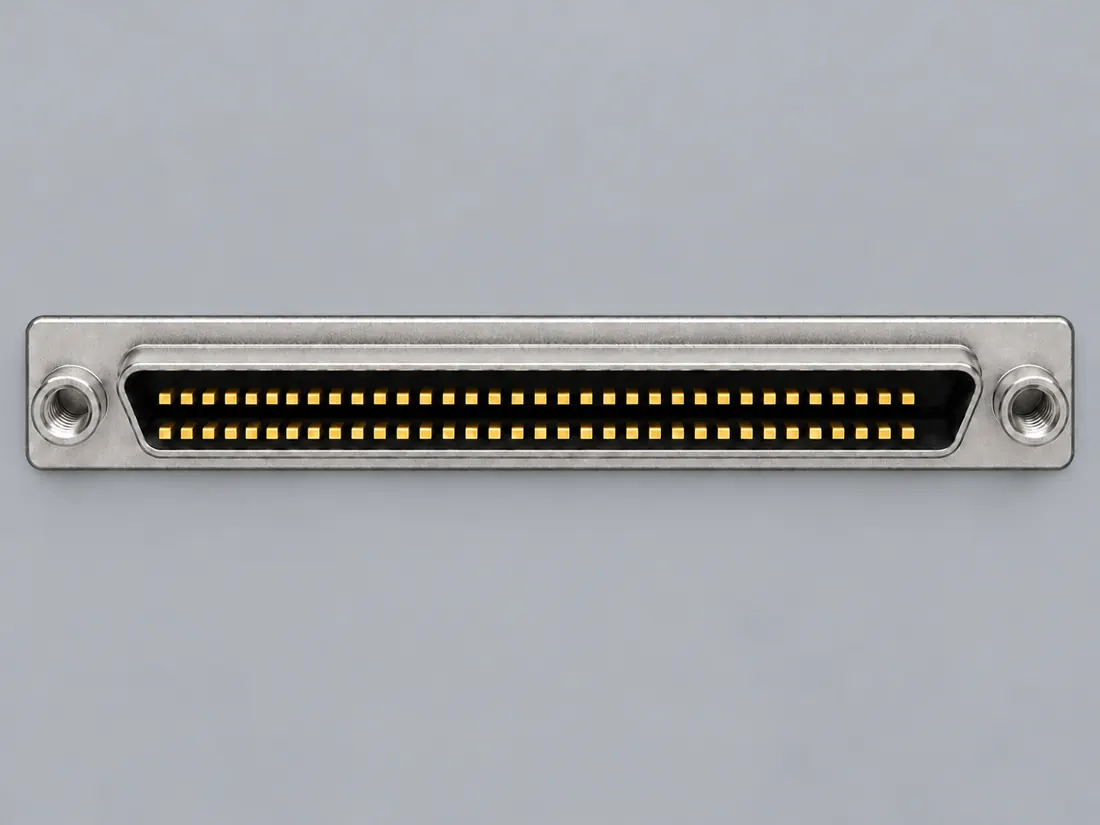

68-contact VHDCI SCSI connector: fitted in place. Computer-generated illustration, not a photograph.

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

68-contact VHDCI SCSI connector: original recognition drawing, not to scale.

Recognition drawing Original schematic, not to scale. Drawing review pending.

The useful distinction

Recognize it. Then verify it.

VHDCI is a very-high-density 68-contact external connector form documented in Amphenol SCSI cable assemblies. [C246A]

Source-scoped identification facts

Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.

Documented examples; not a mating drawing or compatibility approval
Nominal contacts68S266Source-backed nominal position/contact count: 68.
Connector roleplug (CS-VHDCIMX200-001)S913Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. CS-VHDCIMX200-001 /560320002 cable assembly. Documented role: plug. 1m is cable assembly length, not connector dimension. Shipping-carton marks excluded from connector markings. Drawing text inspected;pixels unavailable/direct403.
ManufacturerAmphenol (CS-VHDCIMX200-001)S913Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. CS-VHDCIMX200-001 /560320002 cable assembly. Documented role: plug. 1m is cable assembly length, not connector dimension. Shipping-carton marks excluded from connector markings. Drawing text inspected;pixels unavailable/direct403.
SeriesVHDCI-SCSI cables (CS-VHDCIMX200-001)S913Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. CS-VHDCIMX200-001 /560320002 cable assembly. Documented role: plug. 1m is cable assembly length, not connector dimension. Shipping-carton marks excluded from connector markings. Drawing text inspected;pixels unavailable/direct403.
Exact part / implementationCS-VHDCIMX200-001 (CS-VHDCIMX200-001)S913Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. CS-VHDCIMX200-001 /560320002 cable assembly. Documented role: plug. 1m is cable assembly length, not connector dimension. Shipping-carton marks excluded from connector markings. Drawing text inspected;pixels unavailable/direct403.
Recorded markingsAssembly label permanently bears WEEE and CE logos per drawing note13 (CS-VHDCIMX200-001)S913Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. CS-VHDCIMX200-001 /560320002 cable assembly. Documented role: plug. 1m is cable assembly length, not connector dimension. Shipping-carton marks excluded from connector markings. Drawing text inspected;pixels unavailable/direct403.

Not recorded: Positions / cavity span, Populated contacts, Contact rows, Contact pitch, Dimensions / axis, Contact gender / arrangement, Mounting, Coupling / latch, Keying / polarization, Shell / form, View convention. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.

Recorded variant and source limits
  • Check the exact device manual before wiring or applying power.
  • Sun PCI UltraSCSI single-ended model: Figure B-1 as printed: upper34 left/1 right, lower68 left/35 right; viewing side unstated.
  • Sun PCI UltraSCSI differential model: Figure B-1 as printed: upper34 left/1 right, lower68 left/35 right; viewing side unstated.
  • Intel SE7520JR2 external SCSI channel B / LSI53C1030: Numbered contacts only; Table 96 supplies no mating/termination-face layout.
  • LSI Logic LSIU40SE external J3/J7 16-bit single-ended Ultra SCSI: Numbered pins of LSIU40SE external J3/J7 VHDCI receptacles. Table A.3 establishes pin functions; it does not establish a mating-face left/right layout.
Report a correction to these facts →

Bounded facts, visible unknowns

Specifications and limits

68-contact VHDCI SCSI connector facts and limitations
Documented identification68-position/contact recognition fact in the cited implementation. [C246A]
Mechanical dimensionsNo independently reviewed mechanical drawing in V43; do not use this page for fabrication, fit testing or tolerance work.
Engineering pinoutSource-checked engineering profile available; independent review pending. Open engineering profile →
Verified device listNot included. Check exact device and accessory documentation.
A boundary, not an omission to guess around.

Use the source-backed form or position count only for identification. Resolve ratings, protocol, direction, wiring, cable construction and exact device support from the relevant equipment and component documentation.

Before you connect

What to check

  1. Identify the exact connector family and variant from the equipment or cable documentation.
  2. Keep shape, contact count, protocol, electrical rating and device support as separate facts.
  3. Do not force, rewire or adapt a connector from this recognition record; resolve the remaining requirements first.
Trace a supported connection class →

Pins & wiring

Pinout

Choose the exact wiring. Pin numbers follow its stated view; a schematic does not establish physical positions. Check your exact device before wiring.

What the status labels mean
Confirmed
Recorded research passes agree within this variant; this is not independent human review or hardware validation.
Single source
Only one underlying document, or one pass, supports this assignment.
Device-specific
Supported for the named equipment or wiring only. Check your device’s manual.
Unverified
Missing or conflicting evidence. Do not wire from this row.
Not connected
The source explicitly says NC, no contact or no pin for this wiring.
Wiring variant

Sun PCI UltraSCSI single-ended model

View and evidence limits

Figure B-1 as printed: upper34 left/1 right, lower68 left/35 right; viewing side unstated.

  • P246 VHDCI SCSI 68 — **Partial; agree on comparable single-ended functions** — A's Sun single-ended map and B's LSIU40SE J3/J7 map agree on the data, control, power and return assignments that both verify. Sun's `SP(15)-` on 38 remains unverified; LSI independently calls its own 38 SD15/. Preserve cable-sense behavior at 34/50 rather than flattening it to ordinary ground. A's Sun differential and Intel SE7520JR2 maps remain separate; their differing assignments and Intel's six reserved contacts were not repaired with B's single-ended map. Different primary documents and manufacturers.
  • Historical source-specific map; pin 38 label SP(15)- is unresolved.
  • SP(15)- intended function or correction unresolved in both source variants.
  • Six RESERVED contacts have no verified electrical use or internal connection.
  • No universal SE/LVD/HVD wiring or electrical interchangeability is established. Intel spatial view is also unverified.
VHDCI SCSI 68-contact engineering referenceFigure B-1 as printed: upper34 left/1 right, lower68 left/35 right; viewing side unstated.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: GND (single_source)12: GND (single_source)23: GND (single_source)34: GND (single_source)45: GND (single_source)56: GND (single_source)67: GND (single_source)78: GND (single_source)89: GND (single_source)910: GND (single_source)1011: GND (single_source)1112: GND (single_source)1213: GND (single_source)1314: GND (single_source)1415: GND (single_source)1516: GND (single_source)1617: TERMPWR (single_source)1718: TERMPWR (single_source)1819: OPEN (not_connected)1920: GND (single_source)2021: GND (single_source)2122: GND (single_source)2223: GND (single_source)2324: GND (single_source)2425: GND (single_source)2526: GND (single_source)2627: GND (single_source)2728: GND (single_source)2829: GND (single_source)2930: GND (single_source)3031: GND (single_source)3132: GND (single_source)3233: GND (single_source)3334: Cable Sense (GND) (single_source)3435: SD(12)- (single_source)3536: SD(13)- (single_source)3637: SD(14)- (single_source)3738: Not confirmed (unverified)3839: SDP(1)- (single_source)3940: SD(0)- (single_source)4041: SD(1)- (single_source)4142: SD(2)- (single_source)4243: SD(3)- (single_source)4344: SD(4)- (single_source)4445: SD(5)- (single_source)4546: SD(6)- (single_source)4647: SD(7)- (single_source)4748: SDP- (single_source)4849: GND (single_source)4950: Cable Sense (GND) (single_source)5051: TERMPWR (single_source)5152: TERMPWR (single_source)5253: OPEN (not_connected)5354: GND (single_source)5455: ATN- (single_source)5556: GND (single_source)5657: BSY- (single_source)5758: ACK- (single_source)5859: RST- (single_source)5960: MSG- (single_source)6061: SEL- (single_source)6162: C/D- (single_source)6263: REQ- (single_source)6364: I/O- (single_source)6465: SD(8)- (single_source)6566: SD(9)- (single_source)6667: SD(10)- (single_source)6768: SD(11)- (single_source)68powergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
Sun PCI UltraSCSI single-ended model — source-scoped contact map
PinSignalWhat it doesStatus
1GNDGround reference and return.Single source
Sources
2GNDGround reference and return.Single source
Sources
3GNDGround reference and return.Single source
Sources
4GNDGround reference and return.Single source
Sources
5GNDGround reference and return.Single source
Sources
6GNDGround reference and return.Single source
Sources
7GNDGround reference and return.Single source
Sources
8GNDGround reference and return.Single source
Sources
9GNDGround reference and return.Single source
Sources
10GNDGround reference and return.Single source
Sources
11GNDGround reference and return.Single source
Sources
12GNDGround reference and return.Single source
Sources
13GNDGround reference and return.Single source
Sources
14GNDGround reference and return.Single source
Sources
15GNDGround reference and return.Single source
Sources
16GNDGround reference and return.Single source
Sources
17TERMPWRControl, detection or configuration connection; check the source and device.Single source
Sources
18TERMPWRControl, detection or configuration connection; check the source and device.Single source
Sources
19OPENNot connected or absent in this named wiring.Not connected
Sources
20GNDGround reference and return.Single source
Sources
21GNDGround reference and return.Single source
Sources
22GNDGround reference and return.Single source
Sources
23GNDGround reference and return.Single source
Sources
24GNDGround reference and return.Single source
Sources
25GNDGround reference and return.Single source
Sources
26GNDGround reference and return.Single source
Sources
27GNDGround reference and return.Single source
Sources
28GNDGround reference and return.Single source
Sources
29GNDGround reference and return.Single source
Sources
30GNDGround reference and return.Single source
Sources
31GNDGround reference and return.Single source
Sources
32GNDGround reference and return.Single source
Sources
33GNDGround reference and return.Single source
Sources
34Cable Sense (GND)Control, detection or configuration connection; check the source and device.Single source
Sources
35SD(12)-Control, detection or configuration connection; check the source and device.Single source
Sources
36SD(13)-Control, detection or configuration connection; check the source and device.Single source
Sources
37SD(14)-Control, detection or configuration connection; check the source and device.Single source
Sources
38Not confirmedNo settled assignment. Do not wire from this row.Unverified
Sources
39SDP(1)-Control, detection or configuration connection; check the source and device.Single source
Sources
40SD(0)-Control, detection or configuration connection; check the source and device.Single source
Sources
41SD(1)-Control, detection or configuration connection; check the source and device.Single source
Sources
42SD(2)-Control, detection or configuration connection; check the source and device.Single source
Sources
43SD(3)-Control, detection or configuration connection; check the source and device.Single source
Sources
44SD(4)-Control, detection or configuration connection; check the source and device.Single source
Sources
45SD(5)-Control, detection or configuration connection; check the source and device.Single source
Sources
46SD(6)-Control, detection or configuration connection; check the source and device.Single source
Sources
47SD(7)-Control, detection or configuration connection; check the source and device.Single source
Sources
48SDP-Control, detection or configuration connection; check the source and device.Single source
Sources
49GNDGround reference and return.Single source
Sources
50Cable Sense (GND)Control, detection or configuration connection; check the source and device.Single source
Sources
51TERMPWRControl, detection or configuration connection; check the source and device.Single source
Sources
52TERMPWRControl, detection or configuration connection; check the source and device.Single source
Sources
53OPENNot connected or absent in this named wiring.Not connected
Sources
54GNDGround reference and return.Single source
Sources
55ATN-Control, detection or configuration connection; check the source and device.Single source
Sources
56GNDGround reference and return.Single source
Sources
57BSY-Control, detection or configuration connection; check the source and device.Single source
Sources
58ACK-Control, detection or configuration connection; check the source and device.Single source
Sources
59RST-Reset control; check active level and the named device.Single source
Sources
60MSG-Control, detection or configuration connection; check the source and device.Single source
Sources
61SEL-Control, detection or configuration connection; check the source and device.Single source
Sources
62C/D-Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
63REQ-Control, detection or configuration connection; check the source and device.Single source
Sources
64I/O-Control, detection or configuration connection; check the source and device.Single source
Sources
65SD(8)-Control, detection or configuration connection; check the source and device.Single source
Sources
66SD(9)-Control, detection or configuration connection; check the source and device.Single source
Sources
67SD(10)-Control, detection or configuration connection; check the source and device.Single source
Sources
68SD(11)-Control, detection or configuration connection; check the source and device.Single source
Sources
Sources (1)

Sun PCI UltraSCSI differential model

View and evidence limits

Figure B-1 as printed: upper34 left/1 right, lower68 left/35 right; viewing side unstated.

  • P246 VHDCI SCSI 68 — **Partial; agree on comparable single-ended functions** — A's Sun single-ended map and B's LSIU40SE J3/J7 map agree on the data, control, power and return assignments that both verify. Sun's `SP(15)-` on 38 remains unverified; LSI independently calls its own 38 SD15/. Preserve cable-sense behavior at 34/50 rather than flattening it to ordinary ground. A's Sun differential and Intel SE7520JR2 maps remain separate; their differing assignments and Intel's six reserved contacts were not repaired with B's single-ended map. Different primary documents and manufacturers.
  • Historical source-specific map; pin 38 label SP(15)- is unresolved.
  • SP(15)- intended function or correction unresolved in both source variants.
  • Six RESERVED contacts have no verified electrical use or internal connection.
  • No universal SE/LVD/HVD wiring or electrical interchangeability is established. Intel spatial view is also unverified.
VHDCI SCSI 68-contact engineering referenceFigure B-1 as printed: upper34 left/1 right, lower68 left/35 right; viewing side unstated.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: +SD(12) (single_source)12: +SD(13) (single_source)23: +SD(14) (single_source)34: +SD(15) (single_source)45: +SDP(1) (single_source)56: GND (single_source)67: +SD(0) (single_source)78: +SD(1) (single_source)89: +SD(2) (single_source)910: +SD(3) (single_source)1011: +SD(4) (single_source)1112: +SD(5) (single_source)1213: +SD(6) (single_source)1314: +SD(7) (single_source)1415: +SDP (single_source)1516: DIFFSENS (single_source)1617: TERMPWR (single_source)1718: TERMPWR (single_source)1819: OPEN (not_connected)1920: +ATN (single_source)2021: GND (single_source)2122: +BSY (single_source)2223: +ACK (single_source)2324: +RST (single_source)2425: +MSG (single_source)2526: +SEL (single_source)2627: +C/D (single_source)2728: +REQ (single_source)2829: +I/O (single_source)2930: GND (single_source)3031: +SD(8) (single_source)3132: +SD(9) (single_source)3233: +SD(10) (single_source)3334: +SD(11) (single_source)3435: SD(12)- (single_source)3536: SD(13)- (single_source)3637: SD(14)- (single_source)3738: Not confirmed (unverified)3839: SDP(1)- (single_source)3940: GND (single_source)4041: SD(0)- (single_source)4142: SD(1)- (single_source)4243: SD(2)- (single_source)4344: SD(3)- (single_source)4445: SD(4)- (single_source)4546: SD(5)- (single_source)4647: SD(6)- (single_source)4748: SD(7)- (single_source)4849: SDP- (single_source)4950: Cable Sense (GND) (single_source)5051: TERMPWR (single_source)5152: TERMPWR (single_source)5253: OPEN (not_connected)5354: ATN- (single_source)5455: GND (single_source)5556: BSY- (single_source)5657: ACK- (single_source)5758: RST- (single_source)5859: MSG- (single_source)5960: SEL- (single_source)6061: C/D- (single_source)6162: REQ- (single_source)6263: I/O- (single_source)6364: GND (single_source)6465: SD(8)- (single_source)6566: SD(9)- (single_source)6667: SD(10)- (single_source)6768: SD(11)- (single_source)68powergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
Sun PCI UltraSCSI differential model — source-scoped contact map
PinSignalWhat it doesStatus
1+SD(12)Control, detection or configuration connection; check the source and device.Single source
Sources
2+SD(13)Control, detection or configuration connection; check the source and device.Single source
Sources
3+SD(14)Control, detection or configuration connection; check the source and device.Single source
Sources
4+SD(15)Control, detection or configuration connection; check the source and device.Single source
Sources
5+SDP(1)Control, detection or configuration connection; check the source and device.Single source
Sources
6GNDGround reference and return.Single source
Sources
7+SD(0)Control, detection or configuration connection; check the source and device.Single source
Sources
8+SD(1)Control, detection or configuration connection; check the source and device.Single source
Sources
9+SD(2)Control, detection or configuration connection; check the source and device.Single source
Sources
10+SD(3)Control, detection or configuration connection; check the source and device.Single source
Sources
11+SD(4)Control, detection or configuration connection; check the source and device.Single source
Sources
12+SD(5)Control, detection or configuration connection; check the source and device.Single source
Sources
13+SD(6)Control, detection or configuration connection; check the source and device.Single source
Sources
14+SD(7)Control, detection or configuration connection; check the source and device.Single source
Sources
15+SDPControl, detection or configuration connection; check the source and device.Single source
Sources
16DIFFSENSControl, detection or configuration connection; check the source and device.Single source
Sources
17TERMPWRControl, detection or configuration connection; check the source and device.Single source
Sources
18TERMPWRControl, detection or configuration connection; check the source and device.Single source
Sources
19OPENNot connected or absent in this named wiring.Not connected
Sources
20+ATNControl, detection or configuration connection; check the source and device.Single source
Sources
21GNDGround reference and return.Single source
Sources
22+BSYControl, detection or configuration connection; check the source and device.Single source
Sources
23+ACKControl, detection or configuration connection; check the source and device.Single source
Sources
24+RSTReset control; check active level and the named device.Single source
Sources
25+MSGControl, detection or configuration connection; check the source and device.Single source
Sources
26+SELControl, detection or configuration connection; check the source and device.Single source
Sources
27+C/DControl, detection or configuration connection; check the source and device.Single source
Sources
28+REQControl, detection or configuration connection; check the source and device.Single source
Sources
29+I/OControl, detection or configuration connection; check the source and device.Single source
Sources
30GNDGround reference and return.Single source
Sources
31+SD(8)Control, detection or configuration connection; check the source and device.Single source
Sources
32+SD(9)Control, detection or configuration connection; check the source and device.Single source
Sources
33+SD(10)Control, detection or configuration connection; check the source and device.Single source
Sources
34+SD(11)Control, detection or configuration connection; check the source and device.Single source
Sources
35SD(12)-Control, detection or configuration connection; check the source and device.Single source
Sources
36SD(13)-Control, detection or configuration connection; check the source and device.Single source
Sources
37SD(14)-Control, detection or configuration connection; check the source and device.Single source
Sources
38Not confirmedNo settled assignment. Do not wire from this row.Unverified
Sources
39SDP(1)-Control, detection or configuration connection; check the source and device.Single source
Sources
40GNDGround reference and return.Single source
Sources
41SD(0)-Control, detection or configuration connection; check the source and device.Single source
Sources
42SD(1)-Control, detection or configuration connection; check the source and device.Single source
Sources
43SD(2)-Control, detection or configuration connection; check the source and device.Single source
Sources
44SD(3)-Control, detection or configuration connection; check the source and device.Single source
Sources
45SD(4)-Control, detection or configuration connection; check the source and device.Single source
Sources
46SD(5)-Control, detection or configuration connection; check the source and device.Single source
Sources
47SD(6)-Control, detection or configuration connection; check the source and device.Single source
Sources
48SD(7)-Control, detection or configuration connection; check the source and device.Single source
Sources
49SDP-Control, detection or configuration connection; check the source and device.Single source
Sources
50Cable Sense (GND)Control, detection or configuration connection; check the source and device.Single source
Sources
51TERMPWRControl, detection or configuration connection; check the source and device.Single source
Sources
52TERMPWRControl, detection or configuration connection; check the source and device.Single source
Sources
53OPENNot connected or absent in this named wiring.Not connected
Sources
54ATN-Control, detection or configuration connection; check the source and device.Single source
Sources
55GNDGround reference and return.Single source
Sources
56BSY-Control, detection or configuration connection; check the source and device.Single source
Sources
57ACK-Control, detection or configuration connection; check the source and device.Single source
Sources
58RST-Reset control; check active level and the named device.Single source
Sources
59MSG-Control, detection or configuration connection; check the source and device.Single source
Sources
60SEL-Control, detection or configuration connection; check the source and device.Single source
Sources
61C/D-Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
62REQ-Control, detection or configuration connection; check the source and device.Single source
Sources
63I/O-Control, detection or configuration connection; check the source and device.Single source
Sources
64GNDGround reference and return.Single source
Sources
65SD(8)-Control, detection or configuration connection; check the source and device.Single source
Sources
66SD(9)-Control, detection or configuration connection; check the source and device.Single source
Sources
67SD(10)-Control, detection or configuration connection; check the source and device.Single source
Sources
68SD(11)-Control, detection or configuration connection; check the source and device.Single source
Sources
Sources (1)

Intel SE7520JR2 external SCSI channel B / LSI53C1030

View and evidence limits

Numbered contacts only; Table 96 supplies no mating/termination-face layout.

  • P246 VHDCI SCSI 68 — **Partial; agree on comparable single-ended functions** — A's Sun single-ended map and B's LSIU40SE J3/J7 map agree on the data, control, power and return assignments that both verify. Sun's `SP(15)-` on 38 remains unverified; LSI independently calls its own 38 SD15/. Preserve cable-sense behavior at 34/50 rather than flattening it to ordinary ground. A's Sun differential and Intel SE7520JR2 maps remain separate; their differing assignments and Intel's six reserved contacts were not repaired with B's single-ended map. Different primary documents and manufacturers.
  • SP(15)- intended function or correction unresolved in both source variants.
  • Six RESERVED contacts have no verified electrical use or internal connection.
  • No universal SE/LVD/HVD wiring or electrical interchangeability is established. Intel spatial view is also unverified.
VHDCI SCSI 68-contact engineering referenceNumbered contacts only; Table 96 supplies no mating/termination-face layout.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: +DB(12) (single_source)12: +DB(13) (single_source)23: +DB(14) (single_source)34: +DB(15) (single_source)45: +DB(P1) (single_source)56: +DB(0) (single_source)67: +DB(1) (single_source)78: +DB(2) (single_source)89: +DB(3) (single_source)910: +DB(4) (single_source)1011: +DB(5) (single_source)1112: +DB(6) (single_source)1213: +DB(7) (single_source)1314: +DB(P) (single_source)1415: GROUND (single_source)1516: GROUND (single_source)1617: Not confirmed (unverified)1718: Not confirmed (unverified)1819: Not confirmed (unverified)1920: GROUND (single_source)2021: +ATN (single_source)2122: GROUND (single_source)2223: +BSY (single_source)2324: +ACK (single_source)2425: +RST (single_source)2526: +MSG (single_source)2627: +SEL (single_source)2728: +C/D (single_source)2829: +REQ (single_source)2930: +I/O (single_source)3031: +DB(8) (single_source)3132: +DB(9) (single_source)3233: +DB(10) (single_source)3334: +DB(11) (single_source)3435: -DB(12) (single_source)3536: -DB(13) (single_source)3637: -DB(14) (single_source)3738: -DB(15) (single_source)3839: -DB(P1) (single_source)3940: -DB(0) (single_source)4041: -DB(1) (single_source)4142: -DB(2) (single_source)4243: -DB(3) (single_source)4344: -DB(4) (single_source)4445: -DB(5) (single_source)4546: -DB(6) (single_source)4647: -DB(7) (single_source)4748: -DB(P) (single_source)4849: GROUND (single_source)4950: GROUND (single_source)5051: Not confirmed (unverified)5152: Not confirmed (unverified)5253: Not confirmed (unverified)5354: GROUND (single_source)5455: -ATN (single_source)5556: GROUND (single_source)5657: -BSY (single_source)5758: -ACK (single_source)5859: -RST (single_source)5960: -MSG (single_source)6061: -SEL (single_source)6162: -C/D (single_source)6263: -REQ (single_source)6364: -I/O (single_source)6465: -DB(8) (single_source)6566: -DB(9) (single_source)6667: -DB(10) (single_source)6768: -DB(11) (single_source)68powergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
Intel SE7520JR2 external SCSI channel B / LSI53C1030 — source-scoped contact map
PinSignalWhat it doesStatus
1+DB(12)Control, detection or configuration connection; check the source and device.Single source
Sources
2+DB(13)Control, detection or configuration connection; check the source and device.Single source
Sources
3+DB(14)Control, detection or configuration connection; check the source and device.Single source
Sources
4+DB(15)Control, detection or configuration connection; check the source and device.Single source
Sources
5+DB(P1)Control, detection or configuration connection; check the source and device.Single source
Sources
6+DB(0)Control, detection or configuration connection; check the source and device.Single source
Sources
7+DB(1)Control, detection or configuration connection; check the source and device.Single source
Sources
8+DB(2)Control, detection or configuration connection; check the source and device.Single source
Sources
9+DB(3)Control, detection or configuration connection; check the source and device.Single source
Sources
10+DB(4)Control, detection or configuration connection; check the source and device.Single source
Sources
11+DB(5)Control, detection or configuration connection; check the source and device.Single source
Sources
12+DB(6)Control, detection or configuration connection; check the source and device.Single source
Sources
13+DB(7)Control, detection or configuration connection; check the source and device.Single source
Sources
14+DB(P)Control, detection or configuration connection; check the source and device.Single source
Sources
15GROUNDGround reference and return.Single source
Sources
16GROUNDGround reference and return.Single source
Sources
17Not confirmedNo settled assignment. Do not wire from this row.Unverified
Sources
18Not confirmedNo settled assignment. Do not wire from this row.Unverified
Sources
19Not confirmedNo settled assignment. Do not wire from this row.Unverified
Sources
20GROUNDGround reference and return.Single source
Sources
21+ATNControl, detection or configuration connection; check the source and device.Single source
Sources
22GROUNDGround reference and return.Single source
Sources
23+BSYControl, detection or configuration connection; check the source and device.Single source
Sources
24+ACKControl, detection or configuration connection; check the source and device.Single source
Sources
25+RSTReset control; check active level and the named device.Single source
Sources
26+MSGControl, detection or configuration connection; check the source and device.Single source
Sources
27+SELControl, detection or configuration connection; check the source and device.Single source
Sources
28+C/DControl, detection or configuration connection; check the source and device.Single source
Sources
29+REQControl, detection or configuration connection; check the source and device.Single source
Sources
30+I/OControl, detection or configuration connection; check the source and device.Single source
Sources
31+DB(8)Control, detection or configuration connection; check the source and device.Single source
Sources
32+DB(9)Control, detection or configuration connection; check the source and device.Single source
Sources
33+DB(10)Control, detection or configuration connection; check the source and device.Single source
Sources
34+DB(11)Control, detection or configuration connection; check the source and device.Single source
Sources
35-DB(12)Control, detection or configuration connection; check the source and device.Single source
Sources
36-DB(13)Control, detection or configuration connection; check the source and device.Single source
Sources
37-DB(14)Control, detection or configuration connection; check the source and device.Single source
Sources
38-DB(15)Control, detection or configuration connection; check the source and device.Single source
Sources
39-DB(P1)Control, detection or configuration connection; check the source and device.Single source
Sources
40-DB(0)Control, detection or configuration connection; check the source and device.Single source
Sources
41-DB(1)Control, detection or configuration connection; check the source and device.Single source
Sources
42-DB(2)Control, detection or configuration connection; check the source and device.Single source
Sources
43-DB(3)Control, detection or configuration connection; check the source and device.Single source
Sources
44-DB(4)Control, detection or configuration connection; check the source and device.Single source
Sources
45-DB(5)Control, detection or configuration connection; check the source and device.Single source
Sources
46-DB(6)Control, detection or configuration connection; check the source and device.Single source
Sources
47-DB(7)Control, detection or configuration connection; check the source and device.Single source
Sources
48-DB(P)Control, detection or configuration connection; check the source and device.Single source
Sources
49GROUNDGround reference and return.Single source
Sources
50GROUNDGround reference and return.Single source
Sources
51Not confirmedNo settled assignment. Do not wire from this row.Unverified
Sources
52Not confirmedNo settled assignment. Do not wire from this row.Unverified
Sources
53Not confirmedNo settled assignment. Do not wire from this row.Unverified
Sources
54GROUNDGround reference and return.Single source
Sources
55-ATNControl, detection or configuration connection; check the source and device.Single source
Sources
56GROUNDGround reference and return.Single source
Sources
57-BSYControl, detection or configuration connection; check the source and device.Single source
Sources
58-ACKControl, detection or configuration connection; check the source and device.Single source
Sources
59-RSTReset control; check active level and the named device.Single source
Sources
60-MSGControl, detection or configuration connection; check the source and device.Single source
Sources
61-SELControl, detection or configuration connection; check the source and device.Single source
Sources
62-C/DControl, detection or configuration connection; check the source and device.Single source
Sources
63-REQControl, detection or configuration connection; check the source and device.Single source
Sources
64-I/OControl, detection or configuration connection; check the source and device.Single source
Sources
65-DB(8)Control, detection or configuration connection; check the source and device.Single source
Sources
66-DB(9)Control, detection or configuration connection; check the source and device.Single source
Sources
67-DB(10)Control, detection or configuration connection; check the source and device.Single source
Sources
68-DB(11)Control, detection or configuration connection; check the source and device.Single source
Sources
Sources (1)

LSI Logic LSIU40SE external J3/J7 16-bit single-ended Ultra SCSI

View and evidence limits

Numbered pins of LSIU40SE external J3/J7 VHDCI receptacles. Table A.3 establishes pin functions; it does not establish a mating-face left/right layout.

  • P246 VHDCI SCSI 68 — **Partial; agree on comparable single-ended functions** — A's Sun single-ended map and B's LSIU40SE J3/J7 map agree on the data, control, power and return assignments that both verify. Sun's `SP(15)-` on 38 remains unverified; LSI independently calls its own 38 SD15/. Preserve cable-sense behavior at 34/50 rather than flattening it to ordinary ground. A's Sun differential and Intel SE7520JR2 maps remain separate; their differing assignments and Intel's six reserved contacts were not repaired with B's single-ended map. Different primary documents and manufacturers.
  • This complete map is specific to the LSIU40SE single-ended SCSI implementation. LVD, HVD and instrumentation/DAQ uses are unverified; no HD68-only appendix was transferred to VHDCI.
  • Table A.3 is an electrical pin-number table. No explicit mating-face versus termination-side numbered drawing was established.
VHDCI SCSI 68-contact engineering referenceNumbered pins of LSIU40SE external J3/J7 VHDCI receptacles. Table A.3 establishes pin functions; it does not establish a mating-face left/right layout.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: GND (single_source)12: GND (single_source)23: GND (single_source)34: GND (single_source)45: GND (single_source)56: GND (single_source)67: GND (single_source)78: GND (single_source)89: GND (single_source)910: GND (single_source)1011: GND (single_source)1112: GND (single_source)1213: GND (single_source)1314: GND (single_source)1415: GND (single_source)1516: GND (single_source)1617: TERMPWR (single_source)1718: TERMPWR (single_source)1819: N/C (not_connected)1920: GND (single_source)2021: GND (single_source)2122: GND (single_source)2223: GND (single_source)2324: GND (single_source)2425: GND (single_source)2526: GND (single_source)2627: GND (single_source)2728: GND (single_source)2829: GND (single_source)2930: GND (single_source)3031: GND (single_source)3132: GND (single_source)3233: GND (single_source)3334: GND/16CBLSNS (single_source)3435: SD12/ (single_source)3536: SD13/ (single_source)3637: SD14/ (single_source)3738: SD15/ (single_source)3839: SDP1/ (single_source)3940: SD0/ (single_source)4041: SD1/ (single_source)4142: SD2/ (single_source)4243: SD3/ (single_source)4344: SD4/ (single_source)4445: SD5/ (single_source)4546: SD6/ (single_source)4647: SD7/ (single_source)4748: SDP/ (single_source)4849: GND (single_source)4950: CPRSNT_B/ (single_source)5051: TERMPWR (single_source)5152: TERMPWR (single_source)5253: N/C (not_connected)5354: GND (single_source)5455: SATN/ (single_source)5556: GND (single_source)5657: SBSY/ (single_source)5758: SACK/ (single_source)5859: SRST/ (single_source)5960: SMSG/ (single_source)6061: SSEL/ (single_source)6162: SC_D/ (single_source)6263: SREQ/ (single_source)6364: SI_O/ (single_source)6465: SD8/ (single_source)6566: SD9/ (single_source)6667: SD10/ (single_source)6768: SD11/ (single_source)68powergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
LSI Logic LSIU40SE external J3/J7 16-bit single-ended Ultra SCSI — source-scoped contact map
PinSignalWhat it doesStatus
1GNDGround reference and return.Single source
Sources
2GNDGround reference and return.Single source
Sources
3GNDGround reference and return.Single source
Sources
4GNDGround reference and return.Single source
Sources
5GNDGround reference and return.Single source
Sources
6GNDGround reference and return.Single source
Sources
7GNDGround reference and return.Single source
Sources
8GNDGround reference and return.Single source
Sources
9GNDGround reference and return.Single source
Sources
10GNDGround reference and return.Single source
Sources
11GNDGround reference and return.Single source
Sources
12GNDGround reference and return.Single source
Sources
13GNDGround reference and return.Single source
Sources
14GNDGround reference and return.Single source
Sources
15GNDGround reference and return.Single source
Sources
16GNDGround reference and return.Single source
Sources
17TERMPWRControl, detection or configuration connection; check the source and device.Single source
Sources
18TERMPWRControl, detection or configuration connection; check the source and device.Single source
Sources
19N/CNot connected or absent in this named wiring.Not connected
Sources
20GNDGround reference and return.Single source
Sources
21GNDGround reference and return.Single source
Sources
22GNDGround reference and return.Single source
Sources
23GNDGround reference and return.Single source
Sources
24GNDGround reference and return.Single source
Sources
25GNDGround reference and return.Single source
Sources
26GNDGround reference and return.Single source
Sources
27GNDGround reference and return.Single source
Sources
28GNDGround reference and return.Single source
Sources
29GNDGround reference and return.Single source
Sources
30GNDGround reference and return.Single source
Sources
31GNDGround reference and return.Single source
Sources
32GNDGround reference and return.Single source
Sources
33GNDGround reference and return.Single source
Sources
34GND/16CBLSNSGround reference and return.Single source
Sources
35SD12/Control, detection or configuration connection; check the source and device.Single source
Sources
36SD13/Control, detection or configuration connection; check the source and device.Single source
Sources
37SD14/Control, detection or configuration connection; check the source and device.Single source
Sources
38SD15/Control, detection or configuration connection; check the source and device.Single source
Sources
39SDP1/Signal conductor. Pair, polarity and direction follow this named wiring.Single source
Sources
40SD0/Control, detection or configuration connection; check the source and device.Single source
Sources
41SD1/Control, detection or configuration connection; check the source and device.Single source
Sources
42SD2/Control, detection or configuration connection; check the source and device.Single source
Sources
43SD3/Control, detection or configuration connection; check the source and device.Single source
Sources
44SD4/Control, detection or configuration connection; check the source and device.Single source
Sources
45SD5/Control, detection or configuration connection; check the source and device.Single source
Sources
46SD6/Control, detection or configuration connection; check the source and device.Single source
Sources
47SD7/Control, detection or configuration connection; check the source and device.Single source
Sources
48SDP/Control, detection or configuration connection; check the source and device.Single source
Sources
49GNDGround reference and return.Single source
Sources
50CPRSNT_B/Control, detection or configuration connection; check the source and device.Single source
Sources
51TERMPWRControl, detection or configuration connection; check the source and device.Single source
Sources
52TERMPWRControl, detection or configuration connection; check the source and device.Single source
Sources
53N/CNot connected or absent in this named wiring.Not connected
Sources
54GNDGround reference and return.Single source
Sources
55SATN/Control, detection or configuration connection; check the source and device.Single source
Sources
56GNDGround reference and return.Single source
Sources
57SBSY/Control, detection or configuration connection; check the source and device.Single source
Sources
58SACK/Control, detection or configuration connection; check the source and device.Single source
Sources
59SRST/Reset control; check active level and the named device.Single source
Sources
60SMSG/Control, detection or configuration connection; check the source and device.Single source
Sources
61SSEL/Control, detection or configuration connection; check the source and device.Single source
Sources
62SC_D/Control, detection or configuration connection; check the source and device.Single source
Sources
63SREQ/Control, detection or configuration connection; check the source and device.Single source
Sources
64SI_O/Control, detection or configuration connection; check the source and device.Single source
Sources
65SD8/Control, detection or configuration connection; check the source and device.Single source
Sources
66SD9/Control, detection or configuration connection; check the source and device.Single source
Sources
67SD10/Control, detection or configuration connection; check the source and device.Single source
Sources
68SD11/Control, detection or configuration connection; check the source and device.Single source
Sources
Sources (1)

What is not established

This field note does not approve a connection, adapter, cable assembly, rewiring scheme or fabricated part. It intentionally omits unsupported pin assignments and mechanical tolerances.

Your next step

Move from the form to the requirement.

Read the engineering reference Source-scoped details, orientation and explicit unknowns.Work through a connection Choose your task before deciding on a cable.Explore this evidence trail Inspect the claims and their dependencies. (private workspace)

The source trail

Evidence for this page

AI-assisted inspection is not independent engineering review. Source scope and access limitations are disclosed below. Procedural checklists are editorial requirements, not hardware measurements.

Back to first citation ↑
C246ASource checked · pending review

Amphenol identifies CS-VHDCIMX200-001 as a VHDCI SCSI cable with 68 contacts.

Amphenol Communications Solutions · VHDCI SCSI cable assembly ↗

Locator: Part specification detail
Access: public page. Identification/reference scope only. V43 does not convert this source into a universal pinout, fabrication drawing, electrical approval, protocol guarantee or end-to-end compatibility verdict.

S266: full source recordInspect review dependencies → (private workspace)

Claim scope: V43 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof.. Next review due 2027-01-04.

Suggest a correction to this field note →

Put this field note to work.

Add to discovery trayRecord an unsaved candidate (private workspace)

Compare look-alikes: 68-position MDR versus 68-contact VHDCI

Candidate selection does not confirm the identity or capabilities of your physical item.

Evidence behind this page

Scope first. Source second. Approval separate.

1 linked sources · 1 scoped claims · 0 sources with inspection/access flags.

Page scope: catalogue_expansion_v43

Assessment 2026-10-22 · earliest scheduled source review 2027-01-04. This is a recorded-date assessment, not a live source check. Page-level independent review is not established by this panel.

Inspect 1 source scopes, access limits and dates

S266 · VHDCI SCSI cable assembly

Amphenol Communications Solutions · Manufacturer / product-owner domain · inspected 2026-10-06 · due 2027-01-04

Within inspection window

Scoped support: Identifies a VHDCI-to-VHDCI Universal SCSI cable with 68 contacts; V43 uses only family and contact-count identity.

Not established / limitations: Identification/reference scope only. V43 does not convert this source into a universal pinout, fabrication drawing, electrical approval, protocol guarantee or end-to-end compatibility verdict.

Locator: Part specification detail

Trace 1 claims to their source records

C246A · P246

Amphenol identifies CS-VHDCIMX200-001 as a VHDCI SCSI cable with 68 contacts.

Claim scope: V43 catalogue-expansion identification fact only; not independent technical approval, fabrication data, wiring instruction, protocol guarantee or end-to-end compatibility proof.

Source links: S266 · Evidence trail → (private workspace)

Prepare this page for review → (private workspace)Read the evidence method →

Recorded evidence only. An inspection date, publisher label, source link or generated packet is not independent technical review, hardware testing, fabrication approval or a compatibility verdict.
