LEMO 3K.93C SMPTE 304M HDTV camera connector

LEMO 3K.93C is a broadcast-camera hybrid connector family associated by the manufacturer with the SMPTE 304M HDTV camera interface.

Also called LEMO 3K.93C SMPTE 304M camera connector SMPTE fiber camera connector HDTV camera hybrid connector

A standard designation is not enough to approve a cable assembly or powered camera link; exact connector, cable, cleaning, power and equipment requirements still apply.

Look for

Confirm the 3K.93C family and SMPTE camera-link documentation rather than treating any round hybrid fiber connector as equivalent.

Claim inspection dates: 2026-10-06, 2026-10-22 · Independent review pending

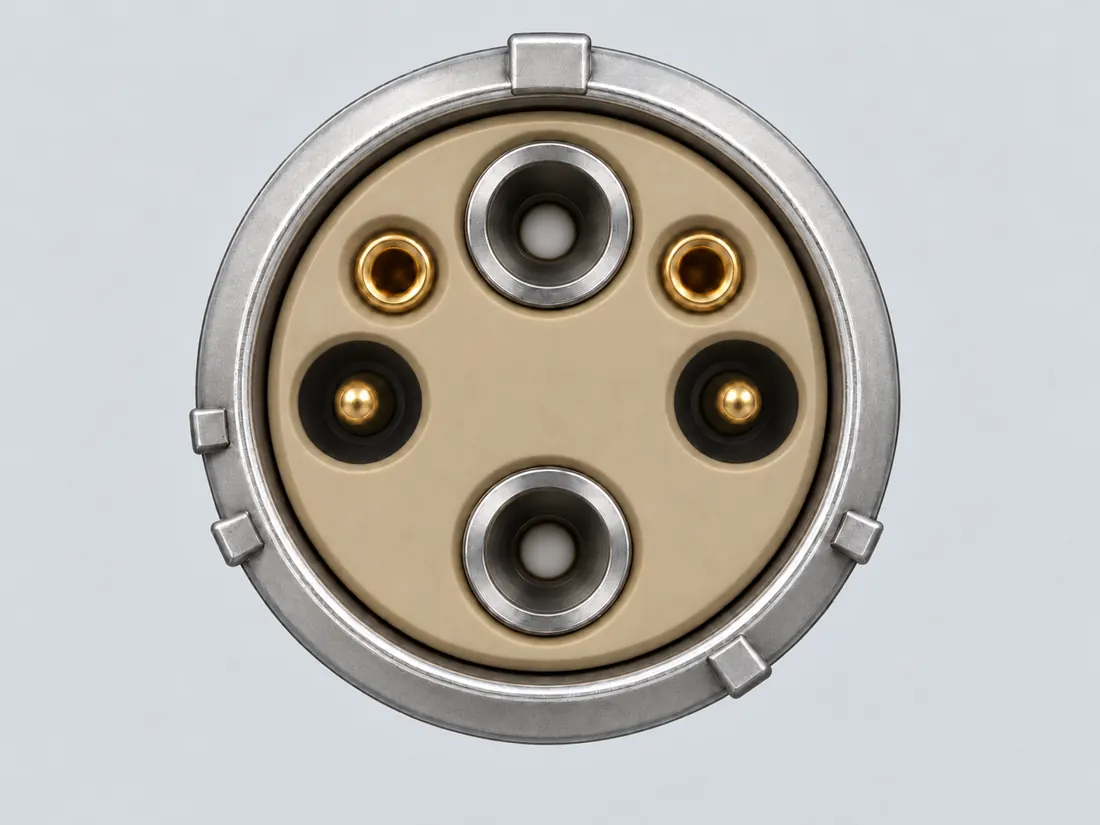

LEMO 3K.93C SMPTE 304M HDTV camera connector: mating face. Computer-generated illustration, not a photograph.

Mating face Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

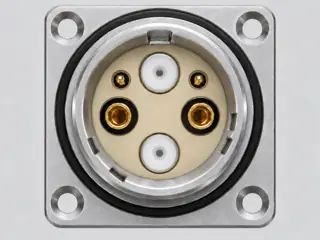

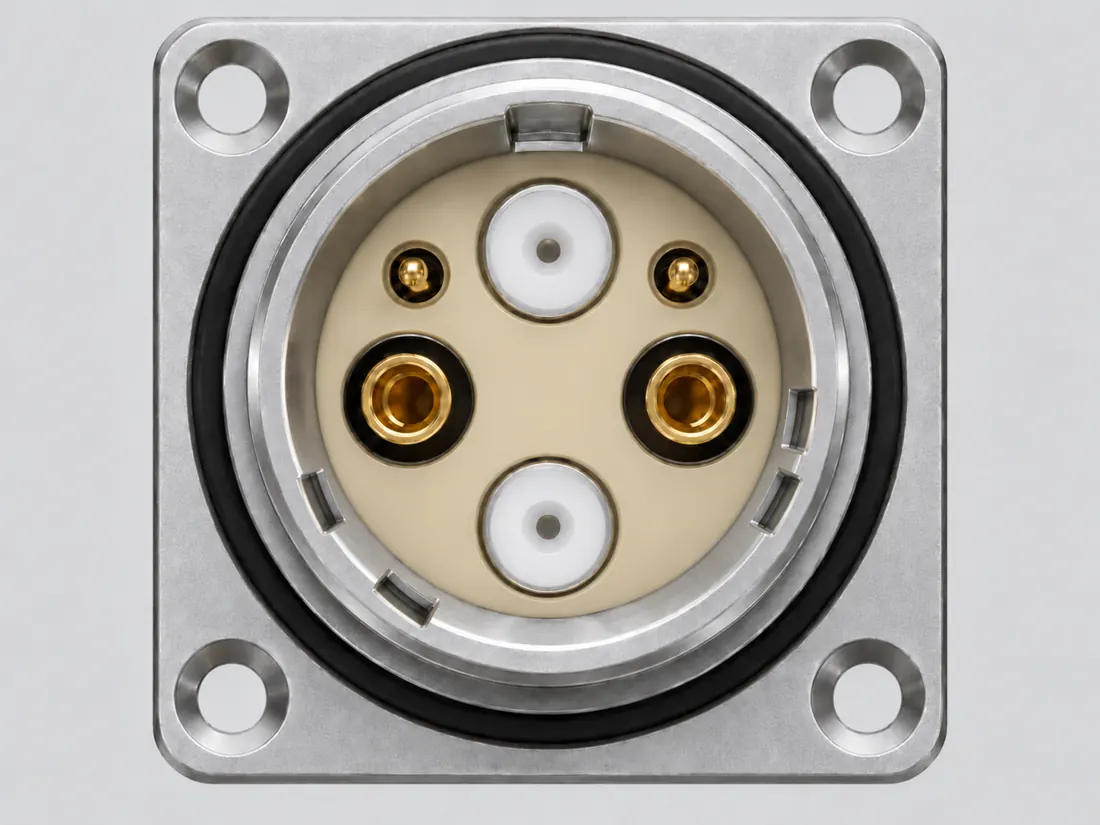

LEMO 3K.93C SMPTE 304M HDTV camera connector: fitted in place. Computer-generated illustration, not a photograph.

Fitted in place Computer-generated illustration with prior AI visual review. Not a photograph, measurement or compatibility check. Independent technical and rights review pending.

LEMO 3K.93C SMPTE 304M HDTV camera connector: original recognition drawing, not to scale.

Recognition drawing Original schematic, not to scale. Drawing review pending.

The useful distinction

Recognize it. Then verify it.

LEMO 3K.93C is a broadcast-camera hybrid connector family associated by the manufacturer with the SMPTE 304M HDTV camera interface. [C258A]

Ikegami HDK-99 camera-head SMPTE-type receptacle (EDW.3K compatible): exact numbered manufacturer contact normalization. Device-specific source-backed research only; see per-contact source and scope. [C881A]

Source-scoped identification facts

Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.

Documented examples; not a mating drawing or compatibility approval
Connector roleplug (FUW.3K.93C.TLEC96Z (catalog example))S817Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. FUW.3K.93C.TLEC96Z (catalog example). Documented role: plug. Examplepartscope,no purchased specimen. Exactcontactsandgender remain authoritative; no63C/LEMO3T interchangeability inferred.
Keying / polarizationW keys; Push-Pull self-latching (FUW.3K.93C.TLEC96Z (catalog example))S817Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. FUW.3K.93C.TLEC96Z (catalog example). Documented role: plug. Examplepartscope,no purchased specimen. Exactcontactsandgender remain authoritative; no63C/LEMO3T interchangeability inferred.
ManufacturerLEMO (FUW.3K.93C.TLEC96Z (catalog example))S817Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. FUW.3K.93C.TLEC96Z (catalog example). Documented role: plug. Examplepartscope,no purchased specimen. Exactcontactsandgender remain authoritative; no63C/LEMO3T interchangeability inferred.
Series3K.93C (FUW.3K.93C.TLEC96Z (catalog example))S817Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. FUW.3K.93C.TLEC96Z (catalog example). Documented role: plug. Examplepartscope,no purchased specimen. Exactcontactsandgender remain authoritative; no63C/LEMO3T interchangeability inferred.
Exact part / implementationFUW.3K.93C.TLEC96Z (catalog example) (FUW.3K.93C.TLEC96Z (catalog example))S817Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. FUW.3K.93C.TLEC96Z (catalog example). Documented role: plug. Examplepartscope,no purchased specimen. Exactcontactsandgender remain authoritative; no63C/LEMO3T interchangeability inferred.

Not recorded: Nominal contacts, Positions / cavity span, Populated contacts, Contact rows, Contact pitch, Dimensions / axis, Contact gender / arrangement, Mounting, Coupling / latch, Shell / form, Recorded markings, View convention. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.

Recorded variant and source limits
  • Check the exact device manual before wiring or applying power.
  • LEMO 3K.93C hybrid insert: 2 fibre + 2 power + 2 signal contacts (connector maker): Plug and socket insulator drawings, LEMO p. 10; positions not mapped.
  • SMPTE 304 plug end (cable plug that mates with the camera; LEMO 3K.93C.Y plugs, e.g., FUW.3K.93C.YSKC96): Plug front face per Fig. 7 left: blue FO top, yellow FO bottom, red LV upper-left, gray LV upper-right, black AUX left, white AUX right.
  • SMPTE 304 jack end (camera/panel jack; LEMO 3K.93C.Y receptacles, e.g., EBW.3K.93C.YSE): Jack front face per Fig. 7 right: blue FO top, yellow FO bottom, gray LV upper-left, red LV upper-right, white AUX left, black AUX right.
Report a correction to these facts →

Bounded facts, visible unknowns

Specifications and limits

LEMO 3K.93C SMPTE 304M HDTV camera connector facts and limitations
Documented identificationConnector-family identity is source-backed; exact variant/count remains implementation-specific. [C258A]
Mechanical dimensionsNo independently reviewed mechanical drawing in V43; do not use this page for fabrication, fit testing or tolerance work.
Engineering pinoutSource-checked engineering profile available; independent review pending. Open engineering profile →
Verified device listNot included. Check exact device and accessory documentation.
A boundary, not an omission to guess around.

Use the source-backed form or position count only for identification. Resolve ratings, protocol, direction, wiring, cable construction and exact device support from the relevant equipment and component documentation.

Before you connect

What to check

  1. Identify the exact connector family and variant from the equipment or cable documentation.
  2. Keep shape, contact count, protocol, electrical rating and device support as separate facts.
  3. Do not force, rewire or adapt a connector from this recognition record; resolve the remaining requirements first.
Trace a supported connection class →

Pins & wiring

Pinout

Choose the exact wiring. Pin numbers follow its stated view; a schematic does not establish physical positions. Check your exact device before wiring.

What the status labels mean
Confirmed
Recorded research passes agree within this variant; this is not independent human review or hardware validation.
Single source
Only one underlying document, or one pass, supports this assignment.
Device-specific
Supported for the named equipment or wiring only. Check your device’s manual.
Unverified
Missing or conflicting evidence. Do not wire from this row.
Not connected
The source explicitly says NC, no contact or no pin for this wiring.
Wiring variant

LEMO 3K.93C hybrid insert: 2 fibre + 2 power + 2 signal contacts (connector maker)

View and evidence limits

Plug and socket insulator drawings, LEMO p. 10; positions not mapped.

  • P258 LEMO 3K.93C (SMPTE 304M) — **Partial, consistent** — A has only contact classes from LEMO's catalogue: 2 single-mode fibre, 2 power, 2 signal, shell earth. B read SMPTE ST 304 and 311 (free on SMPTE's server), which give colour-coded contacts (blue and yellow fibre, red and grey low-voltage, black and white auxiliary) for the plug and jack ends but no contact numbers. The two are consistent but at different levels of detail, and neither establishes per-contact function or polarity. **Publish as contact classes and colours only.**
  • pin_number values are contact-class labels written for this pass, not LEMO or SMPTE contact designations.
  • SMPTE ST 304 and ST 311 are paywalled and were not consulted. Per-contact designations, which power contact is the 'N' contact, the use of the two signal contacts, and fibre direction (camera-to-CCU vs CCU-to-camera) are not established.
  • The insulator drawings show six contacts of three visual types plus the 'N' marking but no legend; mapping drawn shapes to fibre/power/signal was not done to avoid guessing.
  • Not consulted; any differences from SMPTE wiring are unknown.
LEMO 3K.93C SMPTE 304M HDTV camera connector engineering referencePlug and socket insulator drawings, LEMO p. 10; positions not mapped.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manualFO (2 contacts): Not confirmed (unverified)FO (2 contacts)HV (2 contacts): Not confirmed (unverified)HV (2 contacts)LV (2 contacts): Not confirmed (unverified)LV (2 contacts)Shell: Not confirmed (unverified)ShellpowergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.

Not yet independently confirmed. No settled pin table is available for this wiring.

Sources (1)
  • S817 · LEMO SA · SMPTE & ARIB HDTV connection system, connectors and cables (catalogue)

    CAT.MD.LEN.P0415, updated September 2025 · p. 10, 'Insert configurations' table for 93C (plug and socket insulator drawings; contact type, function, Ø, AWG, voltages, current); p. 4, product overview ('two single-mode fibre contacts, two high voltage contacts, and two signal contacts'); p. 15, NORTHWIRE hybrid camera cable according to SMPTE 311 (power wires, signal wires, optical fibres)

SMPTE 304 plug end (cable plug that mates with the camera; LEMO 3K.93C.Y plugs, e.g., FUW.3K.93C.YSKC96)

View and evidence limits

Plug front face per Fig. 7 left: blue FO top, yellow FO bottom, red LV upper-left, gray LV upper-right, black AUX left, white AUX right.

  • P258 LEMO 3K.93C (SMPTE 304M) — **Partial, consistent** — A has only contact classes from LEMO's catalogue: 2 single-mode fibre, 2 power, 2 signal, shell earth. B read SMPTE ST 304 and 311 (free on SMPTE's server), which give colour-coded contacts (blue and yellow fibre, red and grey low-voltage, black and white auxiliary) for the plug and jack ends but no contact numbers. The two are consistent but at different levels of detail, and neither establishes per-contact function or polarity. **Publish as contact classes and colours only.**
  • SMPTE 304/311 name the contacts 'auxiliary electrical' and 'low-voltage/signal' and give ratings and colours only. Which contact carries camera power, its polarity, and what the low-voltage pair is used for depend on the camera system. No camera/CCU manual was obtained.
  • Neither standard assigns transmit/receive direction to the blue or yellow fiber.
  • Only the 2009 revision was read. It states full backward compatibility (Introduction, p. 2).
LEMO 3K.93C SMPTE 304M HDTV camera connector engineering referencePlug front face per Fig. 7 left: blue FO top, yellow FO bottom, red LV upper-left, gray LV upper-right, black AUX left, white AUX right.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manualFO-BLUE: Not confirmed (unverified)FO-BLUEFO-YELLOW: Not confirmed (unverified)FO-YELLOWLV-RED: Not confirmed (unverified)LV-REDLV-GRAY: Not confirmed (unverified)LV-GRAYAUX-BLACK: Not confirmed (unverified)AUX-BLACKAUX-WHITE: Not confirmed (unverified)AUX-WHITEpowergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.

Not yet independently confirmed. No settled pin table is available for this wiring.

Sources (4)

SMPTE 304 jack end (camera/panel jack; LEMO 3K.93C.Y receptacles, e.g., EBW.3K.93C.YSE)

View and evidence limits

Jack front face per Fig. 7 right: blue FO top, yellow FO bottom, gray LV upper-left, red LV upper-right, white AUX left, black AUX right.

  • P258 LEMO 3K.93C (SMPTE 304M) — **Partial, consistent** — A has only contact classes from LEMO's catalogue: 2 single-mode fibre, 2 power, 2 signal, shell earth. B read SMPTE ST 304 and 311 (free on SMPTE's server), which give colour-coded contacts (blue and yellow fibre, red and grey low-voltage, black and white auxiliary) for the plug and jack ends but no contact numbers. The two are consistent but at different levels of detail, and neither establishes per-contact function or polarity. **Publish as contact classes and colours only.**
  • SMPTE 304/311 name the contacts 'auxiliary electrical' and 'low-voltage/signal' and give ratings and colours only. Which contact carries camera power, its polarity, and what the low-voltage pair is used for depend on the camera system. No camera/CCU manual was obtained.
  • Neither standard assigns transmit/receive direction to the blue or yellow fiber.
  • Only the 2009 revision was read. It states full backward compatibility (Introduction, p. 2).
LEMO 3K.93C SMPTE 304M HDTV camera connector engineering referenceJack front face per Fig. 7 right: blue FO top, yellow FO bottom, gray LV upper-left, red LV upper-right, white AUX left, black AUX right.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manualFO-BLUE: Not confirmed (unverified)FO-BLUEFO-YELLOW: Not confirmed (unverified)FO-YELLOWLV-GRAY: Not confirmed (unverified)LV-GRAYLV-RED: Not confirmed (unverified)LV-REDAUX-WHITE: Not confirmed (unverified)AUX-WHITEAUX-BLACK: Not confirmed (unverified)AUX-BLACKpowergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.

Not yet independently confirmed. No settled pin table is available for this wiring.

Sources (4)

Ikegami HDK-99 camera-head SMPTE-type receptacle (EDW.3K compatible)

Device-specific wiring. Check your device’s manual before connecting or applying power.

View and evidence limits

Manufacturer explicitly labels this SMPTE-type camera-head receptacle InsertionSide, guide mark up. Numbered table1–6 is used. SourceOPS-series drawing is a different connector; no rear or cable-end mirror is asserted.

  • Only exact HDK-99 SMPTE-type camera receptacle is assigned. No generic SMPTE color-labeled row is changed.
  • No voltage/current, H/C polarity, optical wavelength/color correspondence or arbitrary camera/CCU interoperability is established.
  • Schematic listing only, not to scale and not a physical contact layout. Fabrication remains unapproved.
LEMO 3K.93C SMPTE 304M HDTV camera connector engineering referenceManufacturer explicitly labels this SMPTE-type camera-head receptacle InsertionSide, guide mark up. Numbered table1–6 is used. SourceOPS-series drawing is a different connector; no rear or cable-end mirror is asserted.SCHEMATIC · physical positions unconfirmedNot to scale · check the named wiring and device manual1: OPT H - B (device_specific)12: OPT B - H (device_specific)23: CONTROL (H) (device_specific)34: CONTROL (C) (device_specific)45: POWER (H) (device_specific)56: POWER (C) (device_specific)6powergrounddataConfigshieldNCUnknown
Schematic only · physical contact positions unconfirmed. Original drawing · not to scale. Scroll sideways if needed.
Ikegami HDK-99 camera-head SMPTE-type receptacle (EDW.3K compatible) — source-scoped contact map
PinSignalWhat it doesStatus
1OPT H - BOptical contact from camera to CCU (OUT from camera).Device-specific
Sources
2OPT B - HOptical contact from CCU to camera (IN to camera).Device-specific
Sources
3CONTROL (H)Control signal from CCU to camera (IN to camera).Device-specific
Sources
4CONTROL (C)Control signal from camera to CCU (OUT from camera).Device-specific
Sources
5POWER (H)Power supplied from CCU, input to camera; H is the maker label, not an inferred positive polarity or voltage.Device-specific
Sources
6POWER (C)Power supplied from CCU, input to camera; C is the maker label, not an inferred ground/polarity.Device-specific
Sources
Sources (1)

What is not established

This field note does not approve a connection, adapter, cable assembly, rewiring scheme or fabricated part. It intentionally omits unsupported pin assignments and mechanical tolerances.

Your next step

Move from the form to the requirement.

Read the engineering reference Source-scoped details, orientation and explicit unknowns.Work through a connection Choose your task before deciding on a cable.Explore this evidence trail Inspect the claims and their dependencies. (private workspace)
