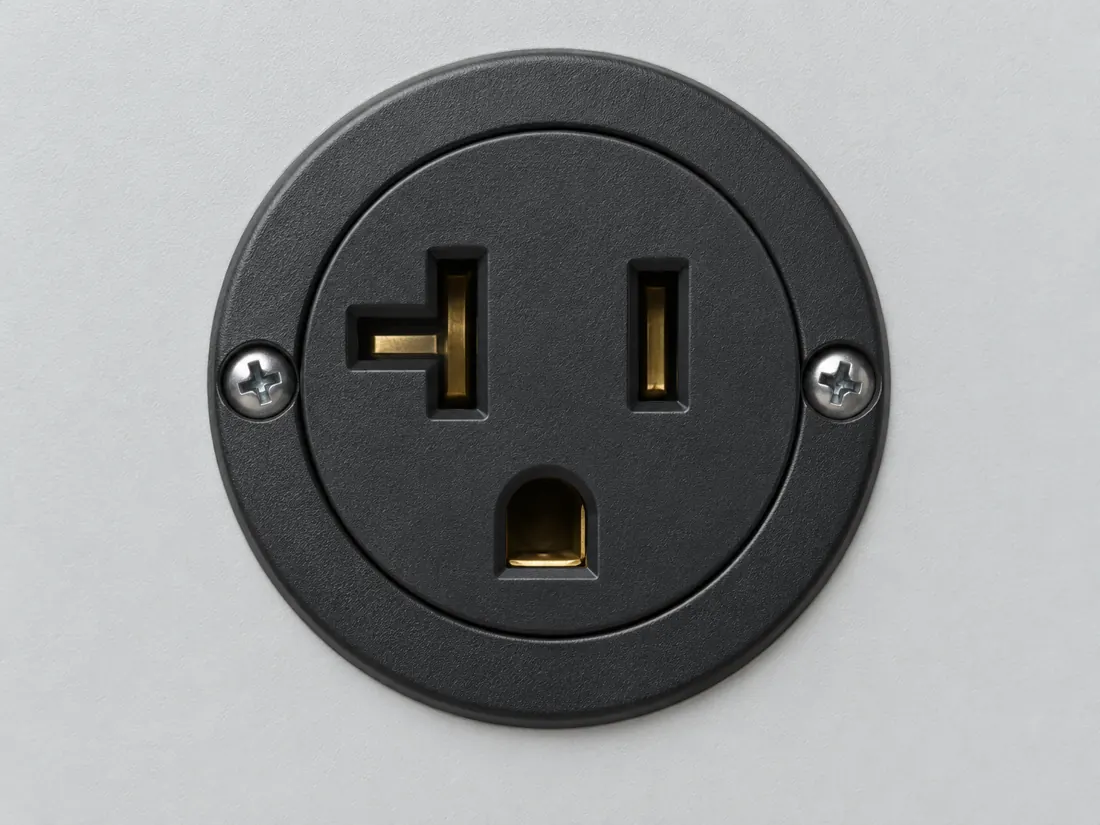

NEMA 5-20P is the plug form paired with the NEMA 5-20 receptacle family. [C187A]
Exact source example HBL5366C: construction: Cord-mounted straight-blade male5-20P plug;2pole3wire grounding. rating: 20A125VAC. temperature: -40C without impact to75C continuous. Exact named part only. Product specification is not a specimen measurement or interoperability approval. No physical compatibility, pin map or hardware validation is established. [C187B]
Source-scoped identification facts
Each value retains its exact example, role and measurement axis. Facts from different parts must not be combined into an invented component.
| Nominal contacts | 3S196Three conductors are represented by the form; this is not a wiring diagram. |
|---|---|
| Dimensions / axis | 1.52 in manufacturer labelled length (HBL5366C); 1.52 in manufacturer labelled width (HBL5366C); 1.96 in manufacturer labelled height (HBL5366C)S900Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. HBL5366C. Documented role: plug. Exact named part only. Product specification is not a specimen measurement or interoperability approval. |
| Connector role | plug (HBL5366C)S900Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. HBL5366C. Documented role: plug. Exact named part only. Product specification is not a specimen measurement or interoperability approval. |

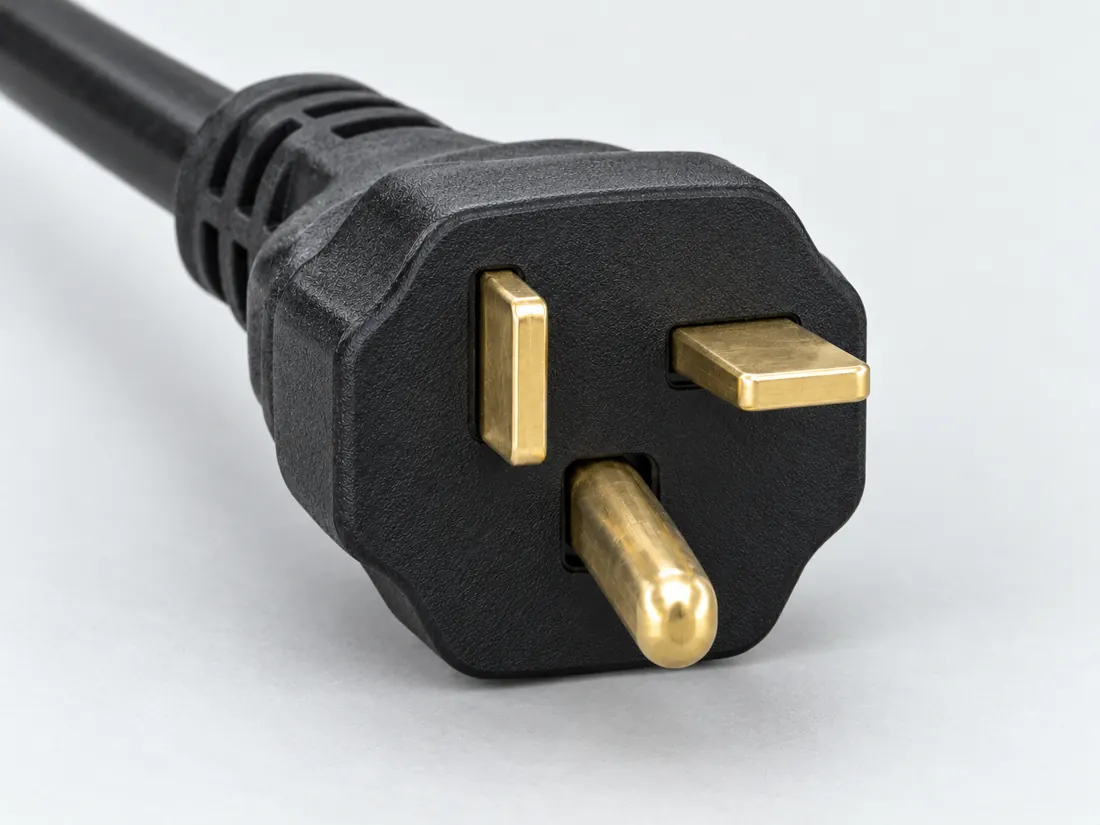

| Keying / polarization | Two flat blades at right angles plus grounding blade in published oblique mating-face photo (HBL5366C)S900Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. HBL5366C. Documented role: plug. Exact named part only. Product specification is not a specimen measurement or interoperability approval. |
| Manufacturer | Hubbell Wiring Device-Kellems (HBL5366C)S900Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. HBL5366C. Documented role: plug. Exact named part only. Product specification is not a specimen measurement or interoperability approval. |
| Series | Insulgrip (HBL5366C)S900Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. HBL5366C. Documented role: plug. Exact named part only. Product specification is not a specimen measurement or interoperability approval. |
| Exact part / implementation | HBL5366C (HBL5366C)S900Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. HBL5366C. Documented role: plug. Exact named part only. Product specification is not a specimen measurement or interoperability approval. |
Not recorded: Positions / cavity span, Populated contacts, Contact rows, Contact pitch, Contact gender / arrangement, Mounting, Coupling / latch, Shell / form, Recorded markings, View convention. Unknown fields stay unknown; illustrations supply no measurements or pin assignments.
Report a correction to these facts →Bounded facts, visible unknowns
Specifications and limits
| Documented identification | NEMA 5-20P plug form. [C187A] |
|---|---|
| Mechanical dimensions | No independently reviewed mechanical drawing in V36; do not use this page for fabrication, fit testing or tolerance work. |
| Engineering pinout | Source-checked engineering profile available; independent review pending. Open engineering profile → |
| Verified device list | Not included. Check exact device and accessory documentation. |
Use the source-backed form or position count only for identification. Resolve ratings, protocol, direction, wiring, cable construction and exact device support from the relevant equipment and component documentation.
