NEMA L5-20 versus L6-20 locking plugs

Is the documented locking plug configuration L5-20P or L6-20P?

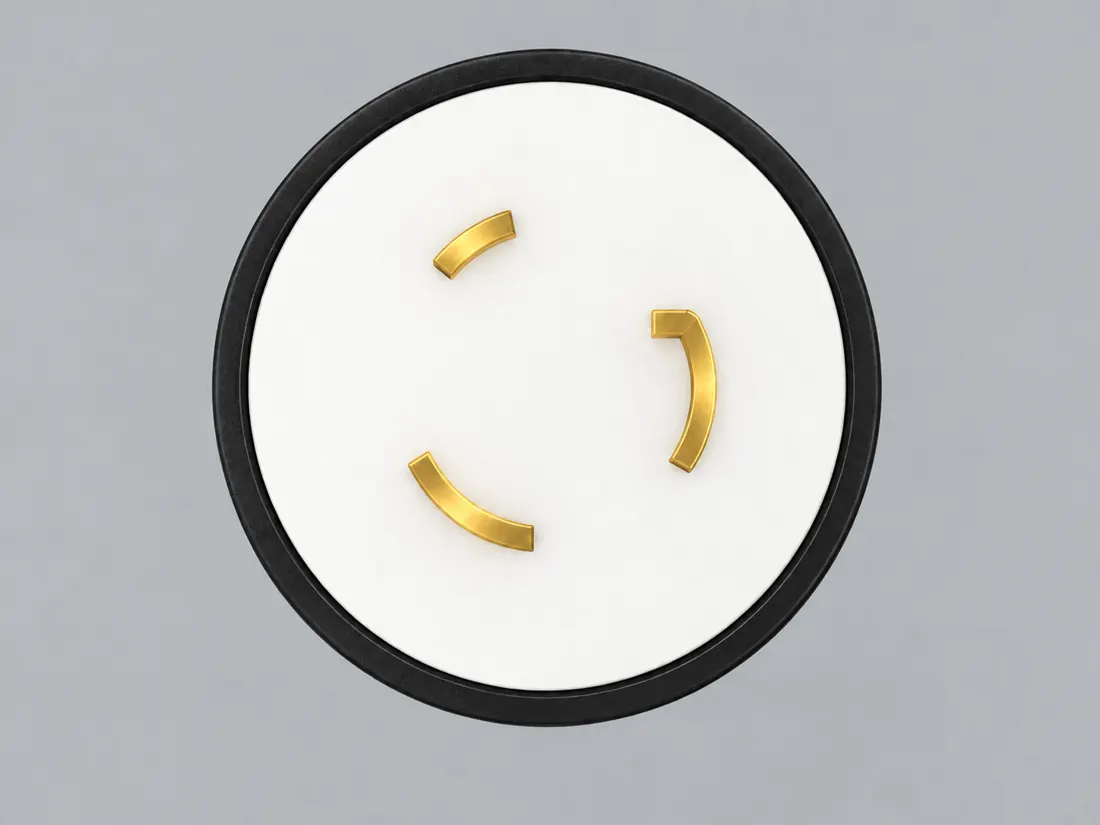

Computer-generated illustration, not a photograph. — P217 · ConnectorNEMA L5-20P locking plug

How they differ

NEMA L5-20P locking plug Read the molded or documented NEMA code instead of judging only by the curved blade pattern.

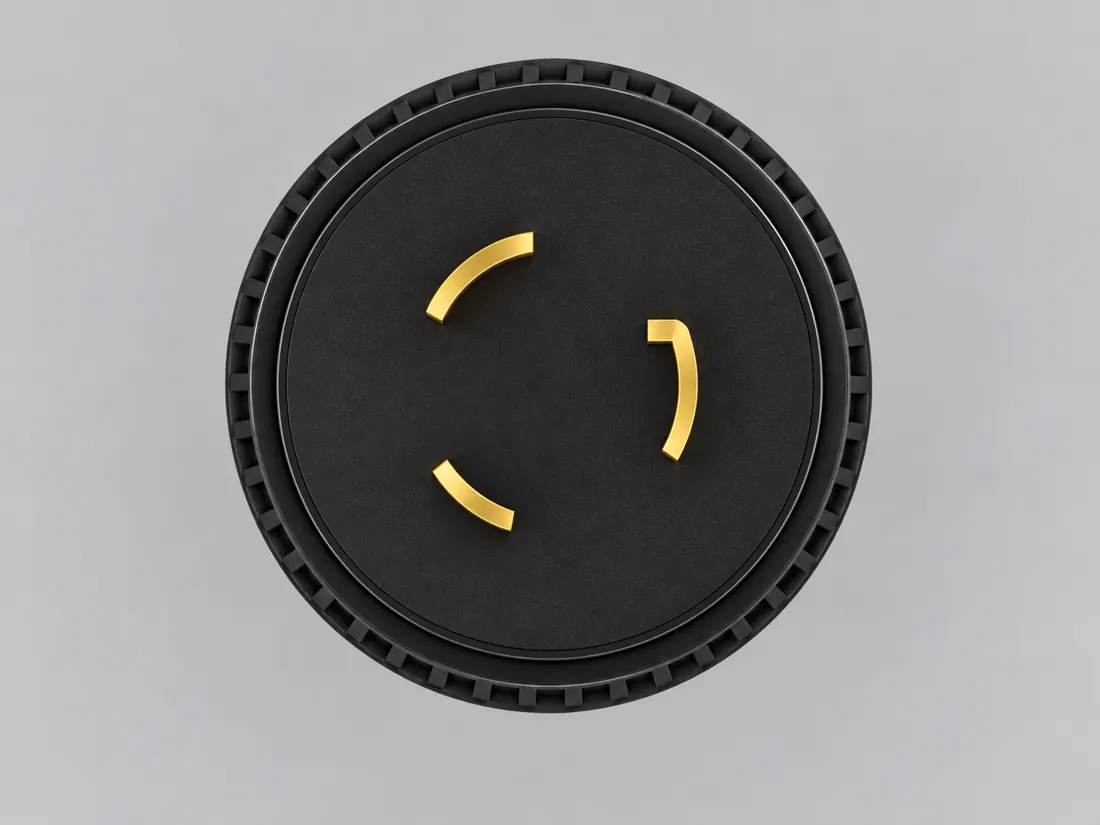

NEMA L6-20P locking plug Use the exact NEMA marking and equipment documentation to distinguish L6-20P from other locking plugs.

Then askIs the documented locking plug configuration L5-20P or L6-20P?

At a glance

Source-scoped form facts; counts, variants and unknowns are distinct
Field	NEMA L5-20P locking plug	NEMA L6-20P locking plug
Type	Connector	Connector
Family	Power	Power
Shape	round	round
Nominal contacts	3S222NEMA L5-20P locking plug; nominal engineering count, not automatically positions, population or a device wiring map. NEMA L5-20P locking plug	3S224NEMA L6-20P locking plug; nominal engineering count, not automatically positions, population or a device wiring map. NEMA L6-20P locking plug
Positions / cavity span	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Contact rows	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.	Not recordedNot recorded in a normalized source-scoped field. Consult the exact part/revision; no value inferred from illustrations.
Connector role	plug; plug (L520P)S222 · S929Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. NEMA L5-20P locking plug L520P. Documented role: plug. New exact Hubbell-PRO L520P/L620P variants, not inherited HBL2311/HBL2321 part dimensions.; Axial dimension excludes exposed blade projection and is an adjustment range.; Drawing pairs2.13in with54.1mm and1.89in with48.5mm as printed; latter conversion differs by0.49mm. Retain mm primary and flag discrepancy rather than silently reconcile.	plug; plug (L620P)S224 · S929Named source examples retain separate role, part, view and axis limits; values are not a universal family specification. NEMA L6-20P locking plug L620P. Documented role: plug. New exact Hubbell-PRO L520P/L620P variants, not inherited HBL2311/HBL2321 part dimensions.; Axial dimension excludes exposed blade projection and is an adjustment range.; Drawing pairs2.13in with54.1mm and1.89in with48.5mm as printed; latter conversion differs by0.49mm. Retain mm primary and flag discrepancy rather than silently reconcile.
Key distinction	Locking geometry and NEMA code are safety-relevant identifiers; a nearby locking form is not a substitute.	L6-20 and L5-20 are intentionally different configurations; visual similarity is not interchangeability.
